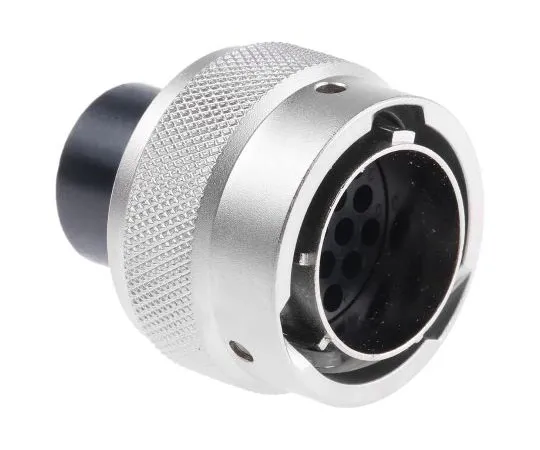

63-7598-93 Souriau UT0W Series Cable Mount Cat6 Ethernet Cable Assembly, 19 contacts Plug UT0W61419PH
Product Description
Product Model: 63-7598-93Product Brand: Souriau Feature […]
Contact Us
Product Details
Product Model: 63-7598-93
Product Brand: Souriau
Features
- UTOW Cable Plug for Pin Contacts. Sealed cylindrical metal connectors IP 68, interchangeable with series TRIM TRIO and UTP. High density contact size, compared to UTO connectors. Plugs for size 20 male contacts (to be ordered separately) (see stock no. ; 191-535 191-535 ). Metal casing with bayonet locking ring guaranteeing 500 cycles. 5-pin guiding ensures correct insertion between plug and base. Cable connectors and shielded sealed cable gland connectors are available separately.
Spec
- Quantity:1piece
- Number of Contacts : 19
- Mounting Type : Cable Mount
- Termination Method : Crimp
- Shell Size : 14
- IP Rating : IP67, IP68, IP69K
- Contact G***er : Male
- Mating Type : Bayonet
- Body Orientation : Straight
- Series : UT0W
- Housing Material : Zinc Alloy
- CODE No.:510-0925
