Electronic/Electrical Parts and Controll Equipments

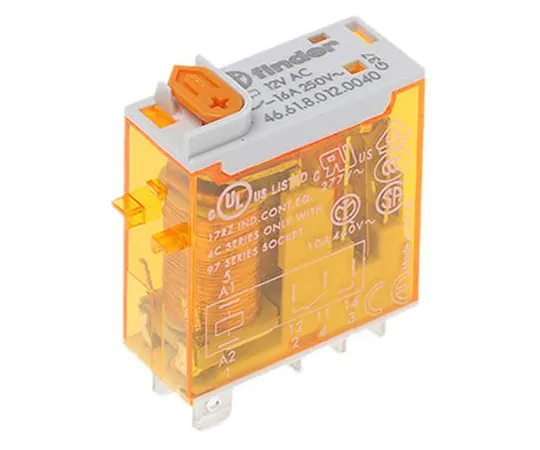

63-7597-12 Finder46 Series SPDT Non-Latching Relay Plug In, 12V ac Coil, 25A 46.61.8.012.0040
Product Description
Product Model: 63-7597-12Product Brand: Finder Features […]
Contact Us
Product Details
Product Model: 63-7597-12
Product Brand: Finder
Features
- UL recognised. 46 Series Relay without LED. Coil to contact isolation 6000Vac (1.2 / 50μs) 8mm creepage and clearance distance coil to contact Contact material: AgNi Ambient temperature range: -40 to +70°C Dimensions (mm): H 32.8, W 29, D12.4 DIN rail sockets and Flange mount adaptors for Faston connection available separately
Spec
- Quantity:1piece
- Coil Voltage : 12V ac
- Coil Power : 1.2W
- Coil Resistance : 80 Ω
- Isolation Coil To Contact : 6kV
- Contact Configuration : SPDT
- Mounting Type : Plug In
- Switching Current : 25A
- Terminal Type : Quick Connect
- Number of Poles : 1
- Maximum Switching Voltage AC : 440V ac
- Series : 46 Series
- CODE No.:508-5539
