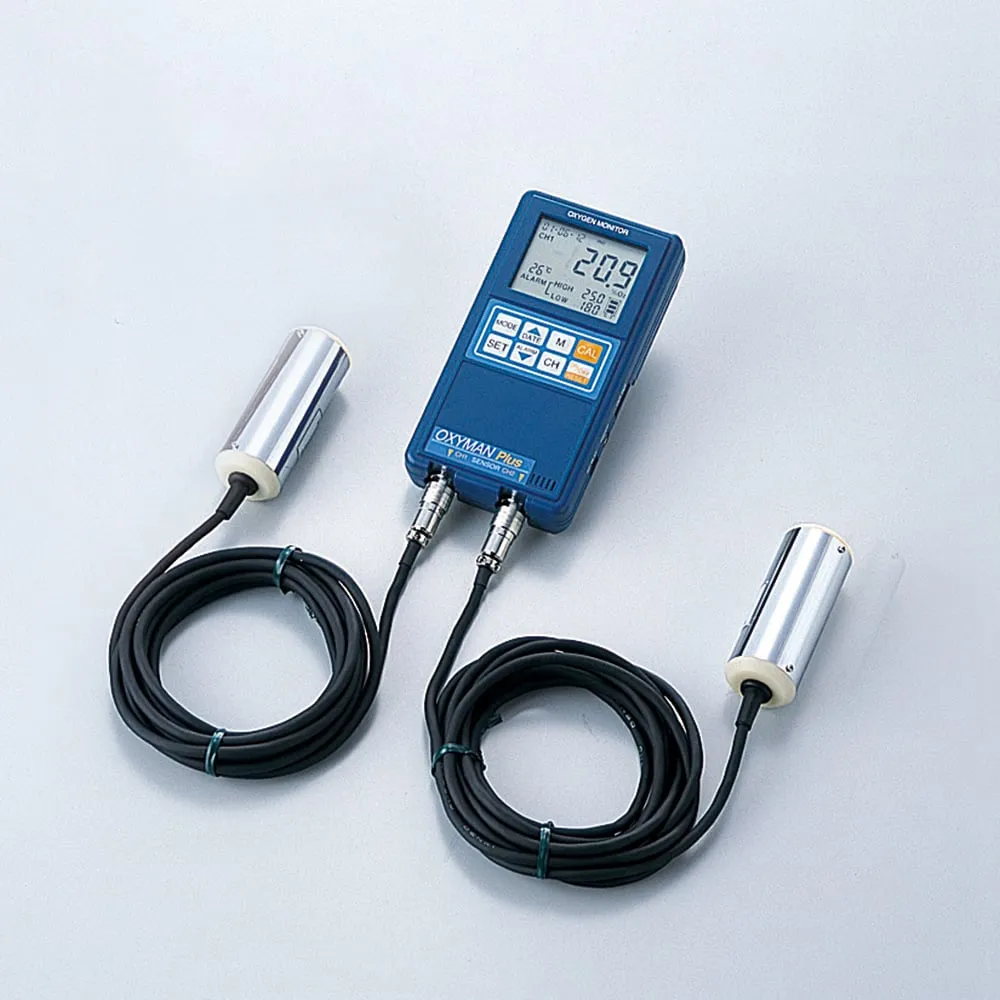

1-5664-24-20 Oxygen monitor (OXYMAN) sensor separation x 2 with calibration certificate OM-25MP20
Product Description
Product Model: 1-5664-24-20Product Brand: Taiei Enginer […]
Contact Us
Product Details
Product Model: 1-5664-24-20
Product Brand: Taiei Enginering
Features
- The long-life oxygen sensor can measure 0~100%.
- Automatic calibration can be performed with one touch in clean air.
- Manual calibration with ***r gas is also available.
- 2-channel metering and data logging are available.
- Data can be converted to Excel(R) data using a PC communication cable.
Spec
- proof of calibration
- Sensor specifications: Separation x 2
- Number entered: 1
- Detection principle: Galvani battery diffusion type
- Gas to be detected: Oxygen
- Display: Digital 3.5 digits
- Measuring range: 0 ~ 100% O2
- Accuracy of measurement: +/- 0.5% O2 (0 ~ 30% O2)
- Response time: About 15 seconds (90% response)
- Calibration: One-touch automatic calibration with clean air, manual calibration with ***r gas
- Operating Mode: Simple Mode Multi-Mode
- Alarm: buzzer sound in simple mode/18 +/- 0.1% O2 or less, buzzer sound in multiple mode/upper and lower limit arbitrary point
- Alarm cancellation method: Automatic
- With RS 232 C port
- Size: 80 x 31 x 150 mm
- Sensor Cable Length: 3 m (Detached Type)
- Weight: approximately 270 g (including batteries)
- Power supply: 3 AA alkaline batteries (included for testing), AC adapter (sold separately)
