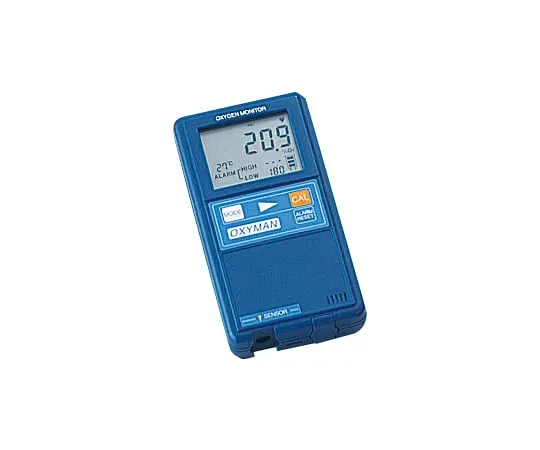

1-5664-21-20 Oxygen Monitor (OXYMAN) With Built-in Sensor With Calibration Certificate OM-25MF01
model:
1-5664-21-20
category:
toner
Product Description
Product Model: 1-5664-21-20 Features The long-life oxyg […]
Contact Us
Product Details
Product Model: 1-5664-21-20
Features
- The long-life oxygen sensor can measure 0~100%.
- Automatic calibration can be performed with one touch in clean air.
- Data can be converted to Excel ® data using a PC communication cable.
Spec
- Model number: OM -25 MF01
- Proof of calibration: none
- Detection principle: Galvani battery diffusion type
- Target gas: oxygen
- Display: 3.5 digital digits
- Measuring range: 0 to 100% O2
- Measurement accuracy: ±0.5% O2 (0 to 30% O2)
- Response speed: approximately 15 seconds (90% Response)
- Calibration: One-touch automatic calibration with clean air
- Operating Mode: Simple Mode/Free Mode
- Alarm: Simple mode/18 ±0.1% O2 or less buzzer sound, Free mode/OFF alarm function
- Alarm release method: Set to free mode
- With RS 232 C port
- Size: 80 x 31 x 150mm
- Weight : about 270g (Including battery)
- Power supply : AA size alkaline battery x 3 pieces (test attachment) , AC adapter (Sold separately)
- Sensor Specifications: Integrated
- OXYMAN
