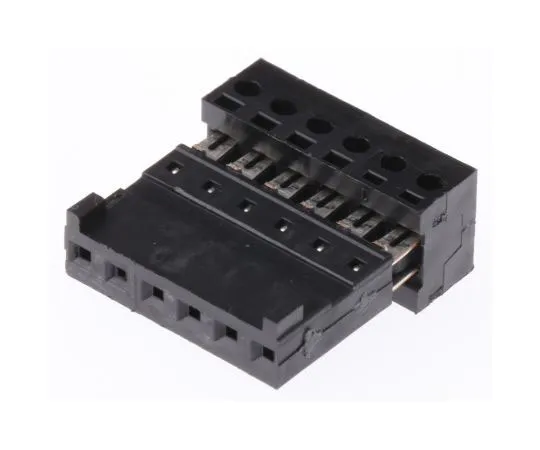

63-7595-38 Stelvio Kontek 6-Way IDC Connector Socket for Cable Mount, 1-Row 4782837106470
model:
63-7595-38
brand:
Stelvio Kontek
Product Description
Product Model: 63-7595-38Product Brand: Stelvio Kontek […]
Contact Us
Product Details
Product Model: 63-7595-38
Product Brand: Stelvio Kontek
Features
- HE13, HE14, IEC 603-8. Autocom HE13 90° Connectors. From Stelvio Kontek, this range of AUTOCOM Single Row IDC Connectors with 90° exit are designed to receive flat or single wire cables in size ranges are 22-24 AWG and 26-28 AWG. Suitable for a variety of low voltage applications, these AUTOCOM IDC Connectors are side stackable and have Double blade contacts. They are encased in black GF Thermoplastic and have an insulation resistance of 105 MΩ min, and a contact resistance of ≤20 mΩ.
Spec
- Quantity:1set(36pieces)
- Number of Contacts : 6
- Number of Rows : 1
- G***er : Female
- Pitch : 2.54mm
- Mounting Type : Cable Mount
- Body Orientation : Right Angle
- Termination Method : IDT
- Current Rating : 3A
- Contact Plating : Gold over Nickel
- Series : Autocom
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- Voltage Rating : 500 V ac
- Housing Material : PET
- CODE No.:163-3503
