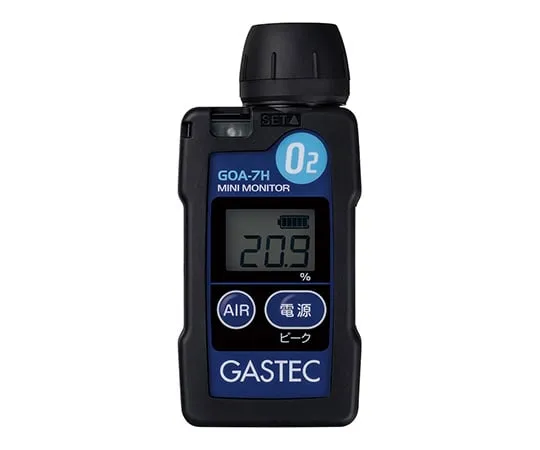

1-5653-31 Mountable oxygen Concentration Indicator with Calibration Certification GOA-7H-S
Product Description
Product Model: 1-5653-31Product Brand: GASTEC Corporati […]
Contact Us
Product Details
Product Model: 1-5653-31
Product Brand: GASTEC Corporation
Features
- It can be ***d for both telemetry using a sensor cord and measurement while being worn on the body.
- Lamp, buzzer, and vibration will reliably alert you of danger.
- Oxygen AIR adjustment is possible with one-touch operation.
Spec
- Specifications: Body + calibration certificate (with results document) + Traceability Chart
- measurement range (%): Main Unit + calibration certificate (with results document) + Traceability System Diagram
- Quantity: 1
- Measurement principle: Galvani battery
- Air intake method: diffusion method
- explosion-proof Performance : Intrinsic Safety explosion-proof Structure Ex ia IIC T3Ga Pass Number : TC 22573
- dust-proof drip-proof IP 64 equivalent
- Indication accuracy: ± 0.5% (oxygen concentration)
- 90% response time : 15 seconds or less (At 20 ° C)
- Display method: Minimum scale 0.1%
- Alarm system: Buzzer, LED lamp blinking, display lighting, vibration, automatic reset type
- power supply : AAA size Alkali battery x 1 piece (test attachment)
- Size: 48 x 37 x 105 mm (Including protrusion)
- Weight: about 110 g (Including battery Sensor) * Sensor cord excluded
- Other functions: automatic sensor check, automatic circuit operation check, battery exchange alarm, radio wave and static electricity failure countermeasure
- *measurement range Coverage: 25.1 to 42.0%; over 42.0% HIs
