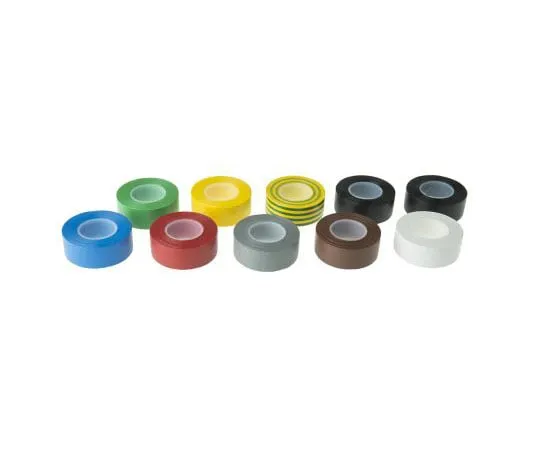

63-7593-92 Advance Tapes Assorted Electrical Tape, 19mm x 10m AT7
model:
63-7593-92
brand:
Advance Tapes
Product Description
Product Model: 63-7593-92Product Brand: Advance Tapes F […]
Contact Us
Product Details
Product Model: 63-7593-92
Product Brand: Advance Tapes
Features
- Advance Tapes AT7 - PVC Electrical Insulation Tape. The AT7 range of electrical tape from Advance Tapes is a PVC based insulation tape suitable for any number of electrical applications. With a breakdown voltage over 8000 V, the 0.13mm PVC tape ***s a rubber resin for reliable contact and adhesion over time. The flame retardant tape is self-extinguishing and meets BS EN 60454-3-1/Type 2 legislation as well as being RoHS compliant. Suitable for almost any industrial, residential or DIY application AT7 tapes are both water and UV resistant and come in a range of colours. Features ; Benefits High breakdown voltage for excellent electrical insulation -5 to +70 °C working temperature for industrial and residential *** Available in 10m, 20m and 33m rolls 12mm, 19mm and 28mm tape widths for various scale working Water Resistant UV Resistant Non-corrosive adhesive to protect surfaces Flame retardant and self-extinguishing for safe ***. AT7 Range Options Assorted Pack: 12mm 20m ; 504-2380 504-2380 19mm 10m ; 504-2403 504-2403 19mm 20m ; 511-4312 511-4312 19mm 33m ; 504-2396 504-2396 Black: 12mm 20m ; 494-304 494-304 19mm 20m ; 465-006 465-006 19 mm 20m ; 511-4299 511-4299 38mm 20m ; 494-405 494-405 19mm 33m ; 494-382 494-382 Blue: 12mm 20m ; 494-348 494-348 19mm 20m ; 511-4441 511-4441 38mm 20m ; 227-2948 227-2948 19mm 33m ; 227-2982 227-2982 Brown: 12mm 20m ; 495-5831 495-5831 19mm 20m ; 511-4277 511-4277 19mm 33m ; 495-5853 495-5853 Green: 12mm 20m ; 494-332 494-332 19mm 20m ; 511-4429 511-4429 19mm 33m ; 227-3008 227-3008 Green ; Yellow: 12mm 20m ; 494-360 494-360 19mm 20m ; 511-4457 511-4457 19mm 33m ; 227-2960 227-2960 Grey: 12mm 20m ; 495-5847 495-5847 19mm 20m ; 511-4283 511-4283 19mm 33m ; 511-4334 511-4334 Red: 12mm 20m ; 494-310 494-310 19mm 20m ; 511-4407 511-4407 19mm 33m ; 494-398 494-398 White: 12mm 20m ; 494-354 494-354 19mm 20m ; 511-4306 511-4306 38mm 20m ; 494-411 494-411 19mm 33m ; 227-2976 227-2976 Yellow: 12mm 20m ; 494-326 494-326 19mm 20m ; 511-4413 511-4413 38mm 20m ; 227-2954 227-2954 19mm 33m ; 227-2926 227-2926
Spec
- Quantity:1piece/set
- Colour : Assorted
- Backing Material : PVC
- Width : 19mm
- Length : 10m
- Thickness : 0.13mm
- Minimum Operating Temperature : -5°C
- Maximum Operating Temperature : +70°C
- Adhesive Material : Rubber Resin
- Trade Name : AT7
- Adhesion Strength : 2.4 N/cm
- Elongation at Break : 180%
- Tensile Strength : 26N/cm
- Model Number : AT7
- CODE No.:504-2403
