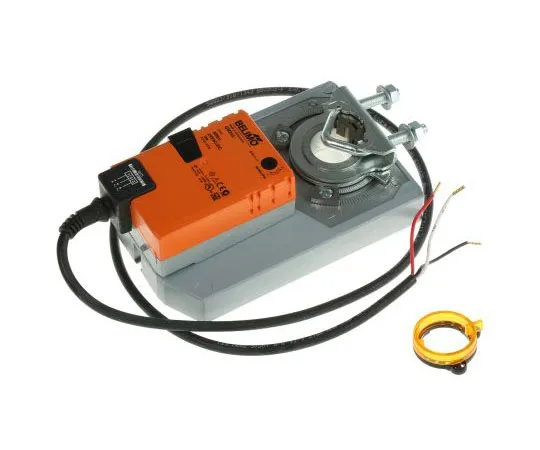

63-7593-84 Open/Close Damper Actuator, 40Nm, 24 V ac/dc GM24A
Product Description
Product Model: 63-7593-84Product Brand: Belimo Features […]
Contact Us
Product Details
Product Model: 63-7593-84
Product Brand: Belimo
Features
- Air Conditioning. Maintenance-free, low power consumption, rotary damper/louvre actuators, compatible with all leading makes of HVAC controls. Minimum life of 60000 operations Stall torque technology requires no *** switches Adjustable U-clamp accepts round or square shafts Visible position indicator Pushbutton manual override Direction change switch IP54 rated 150s motor run time 1m pre-wired cable Stock nos. < 504-1236') 504-1236/ & < 504-1242') 504-1242/ feature an integrated 1xSPDT 3 (0.5)A 250Vac auxiliary switch Optional auxiliary switch (stock no. < 504-1545') 504-1545 suitable for *** with LM, NM, SM and GM damper actuators, features 2xSPDT switches rated at 3 (0.5)A 250Vac and supplied with 1m of cable
Spec
- Quantity:1piece
- Maximum Damper Area : 8m²
- Damper Spindle Compatibility : 12 → 26.7mm
- Power Consumption : 4W
- Control Type : Open/Close
- Supply Voltage : 24 V ac/dc
- Motor Torque : 40Nm
- Noise Level : 45dB(A)
- Maximum Damper Spindle Size : 26.7mm
- Minimum Damper Spindle Size : 12mm
- CODE No.:504-1321
