63-7593-49 3M 50-Way IDC Connector Plug for Cable Mount, 2-Row 7850-0000PR
Product Description
Product Model: 63-7593-49Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-7593-49
Product Brand: 3M Company
Features

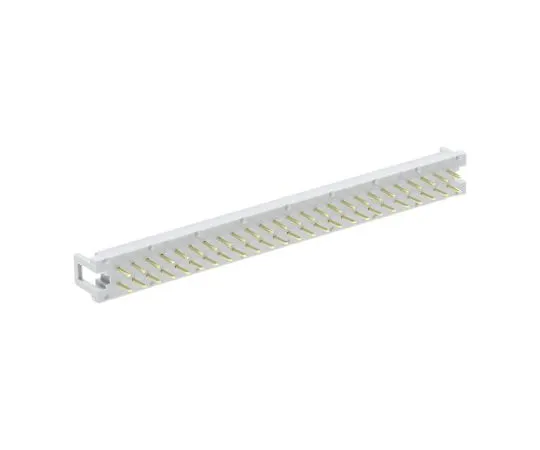

- 3M 78 Series 2.54 x 2.54mm PCB IDC Transition Ribbon Cable Connector. 78 Series 2.54 x 2.54mm PCB mount two row IDC ribbon cable transition connectors that allow ribbon cable connection to a PCB without the need for two connectors thus reducing costs. These 78 Series PCB IDC transition connectors have a 7.3mm terminated height for low profile off the board applications, solder bumps built into the housings that facilitate board cleaning and fit a standard 2.54 x 2.54mm header layout.
Spec
- Quantity:1piece
- Number of Contacts : 50
- Number of Rows : 2
- G***er : Male
- Pitch : 2.54mm
- Mounting Type : Cable Mount
- Body Orientation : Right Angle
- Termination Method : IDT
- Current Rating : 1A
- Contact Plating : Gold over Nickel
- Series : 78XX
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +105°C
- Contact Material : Beryllium Copper
- CODE No.:502-9034
