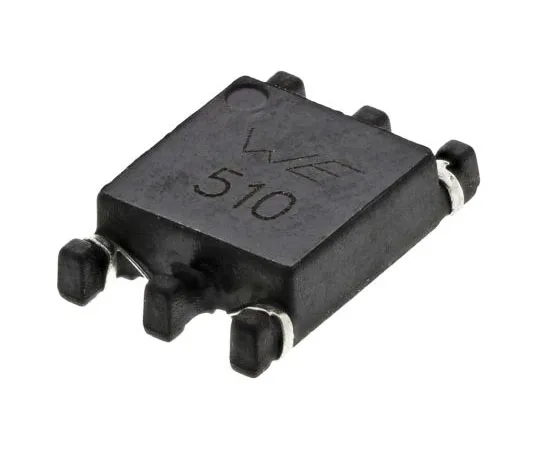

63-7593-18 Wurth WE-SL3 Series Wire-wound SMD Inductor with a Ferrite Core, 51 μH -30 → +50% Dual 500mA Idc 744252510
model:
63-7593-18
brand:
Wurth Elektronik
Product Description
Product Model: 63-7593-18Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-7593-18
Product Brand: Wurth Elektronik
Features
- Common Mode SMD Line Inductors, Type WE-SL3. 6-way SMD housing Impedances up to 5000 Ω Current rating up to 700 mA Low stray/leakage inductance UL compliant housing (UL 94-VO) Applications include CAN, USB, firewire, data and power lines
Spec
- Quantity:1set(1500pieces)
- Inductance : 51 μH
- Maximum DC Current : 500mA
- Length : 9.2mm
- Depth : 6.6mm
- Height : 2.5mm
- Dimensions : 9.2 x 6.6 x 2.5mm
- Tolerance : -30 → +50%
- Maximum DC Resistance : 250mΩ
- Series : WE-SL3
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 100kHz
- Minimum Operating Temperature : -40°C
- CODE No.:163-3657
