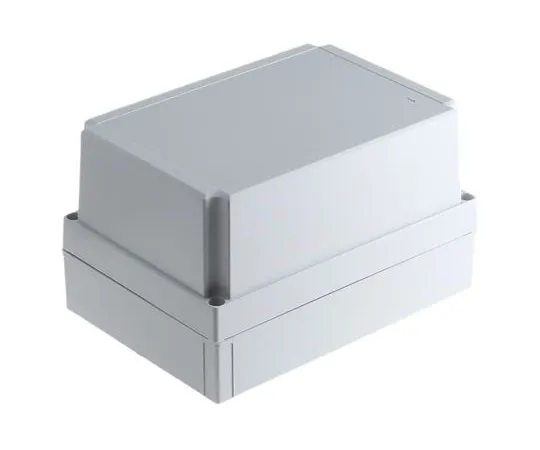

63-7590-82 Fibox ABS Enclosure, IP66, IP67, 255 x 180 x 150mm ABS 200/150 HG ENCLOSURE
Product Description
Product Model: 63-7590-82Product Brand: Fibox Features […]
Contact Us
Product Details
Product Model: 63-7590-82
Product Brand: Fibox
Features
- NEMA, ULC, EN50298, EN60950 and AS3132-1991. FIBOX MNX ABS Series Enclosures. MNX ABS enclosures utilise world-class injection moulding technology. They are designed to ho*** and protect electrical and electronic components in the most demanding applications. Features and Benefits. Ideal for housing electrical and electronic components Lid features a recess which is ideal for membrane keypads IP66/67 rating and comply with EN60529 Temperature range: -40 °C to +80 °C short term, -40 °C to +60 °C for continuous *** Dimensions: 100 x 100 x 35 mm to 255 x 180 x 175 mm RAL 7035. (IP) Ingress Protection and what it means?. IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. FAQ ‘s. Can the box be ***d outside? Yes, MNX series enclosures have an IP66/67 rating Are they mountable? Yes, they are suitable for wall mounting or portable applications What is supplied? Enclosure, Base with screws for mounting plate/DIN-rail, Cover with silicon gasket and Polyamide cover screws.
Spec
- Quantity:1piece
- Body Material : ABS
- External Dimensions : 255 x 180 x 150mm
- External Length : 255 mm
- External Width : 180 mm
- External Height : 150 mm
- IP Rating : IP66, IP67
- Colour : Grey
- Shielded : No
- CODE No.:498-4801
