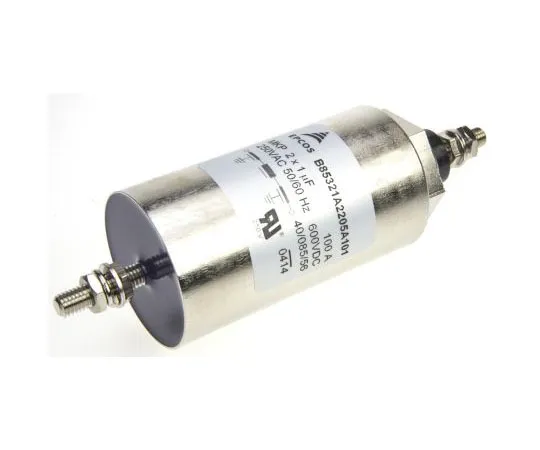

63-7589-51 Epcos B85321 Series 100A 250 V ac, 600 V dc 60Hz Screw Mount Feedthrough Capacitor, with Screw Terminals B85321A2205A101
Product Description
Product Model: 63-7589-51Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7589-51
Product Brand: EPCOS
Features
- Complies with EN 133200 standard. B85321 Feedthrough Filters, PI-Section, Metallised Polypropylene. High attenuation and self healing properties Metal case with synthetic resin terminals Applications include broadband interference suppression for ac/dc supply lines in shielded rooms, telephone exchanges, electrical systems and power supplies Compact dimensions
Spec
- Quantity:1piece
- Maximum Current Rating : 100A
- Maximum Voltage Rating : 250 V ac, 600 V dc
- Mounting Type : Screw Mount
- Termination Style : Screw
- Series : B85321
- Operating Frequency : 60Hz
- Length : 181mm
- Depth : 55mm
- Height : 55mm
- Dimensions : 181 x 55 x 55mm
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- CODE No.:496-4021
