Electronic/Electrical Parts and Controll Equipments

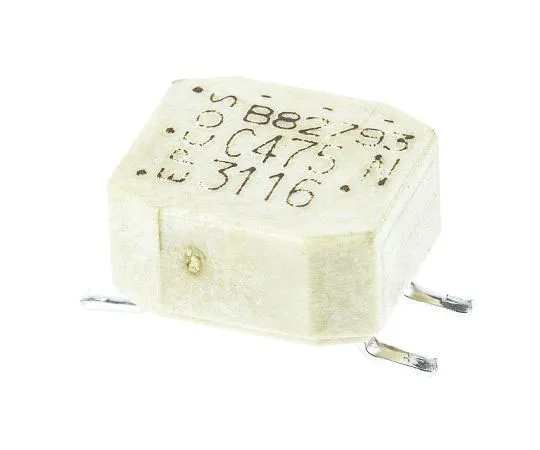

63-7589-46 EPCOS B82793 Series Wire-wound SMD Inductor with a Ferrite Core, 4.7 mH -30 → +50% Wire-Wound 400mA Idc B82793C0475N265
Product Description
Product Model: 63-7589-46Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7589-46
Product Brand: EPCOS
Features
- Epcos B82793 Series SMD Common Mode Chokes. Current compensated ring core double choke with ferrite core suitable for industrial applications B82793C versions have a bifilar winding suitable for suppression of asymmetric interference B82793S versions have a sector winding suitable for suppression of both asymmetric interference (using LR) and symmetric interference (using LS) and can **** to reduce high frequency EMC problems Low component height Flame retardant case to UL 94 V-0 Lead-free tinned terminals
Spec
- Quantity:1set(1500pieces)
- Inductance : 4.7 mH
- Maximum DC Current : 400mA
- Length : 9mm
- Depth : 6mm
- Height : 4.8mm
- Dimensions : 9 x 6 x 4.8mm
- Tolerance : -30 → +50%
- Maximum DC Resistance : 550mΩ
- Series : B82793
- Core Material : Ferrite
- Inductor Construction : Wire-Wound
- CODE No.:167-8234
