Electronic/Electrical Parts and Controll Equipments

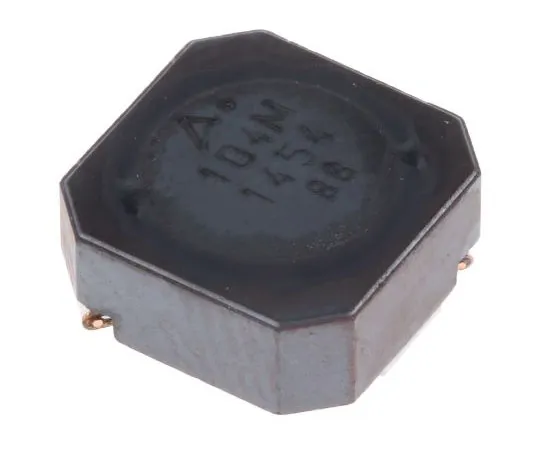

63-7589-29 EPCOS B82462-G4 Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±20% Wire-Wound 1.05A Idc B82464G4104M000
Product Description
Product Model: 63-7589-29Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7589-29
Product Brand: EPCOS
Features
- B82464-G4 Series Magnetically Shielded Wire Wound Chokes. SMT size 10 x 10mm Magnetically shielded Ferrite core construction Leadfree tinned terminals Wide operating temperature -55°C → +125°C Very high rated current Low DC resistance Applications in filtering of power supplies
Spec
- Quantity:1piece
- Inductance : 100 μH
- Maximum DC Current : 1.05A
- Length : 10.4mm
- Depth : 10.4mm
- Height : 4.8mm
- Dimensions : 10.4 x 10.4 x 4.8mm
- Shielded : Yes
- Tolerance : ±20%
- Maximum DC Resistance : 220mΩ
- Series : B82462-G4
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 6.5MHz
- Inductor Construction : Wire-Wound
- CODE No.:496-0669
