63-7588-50 TE Connectivity AMPMODU Female Crimp Terminal Contact 22AWG 87165-1 87165-1
model:
63-7588-50
brand:
TE Connectivity
Product Description
Product Model: 63-7588-50Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7588-50
Product Brand: TE Connectivity
Features

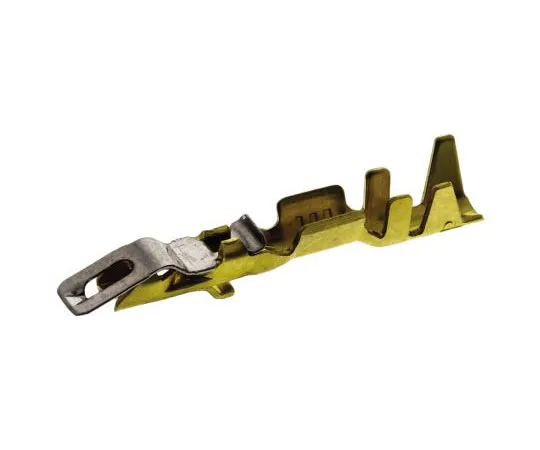

- TE Connectivity AMPMODU Locking Clip Crimp Contacts. AMPMODU self retaining locking clip crimp contacts for a permanent connection with quick connect and disconnect. These locking clip wire crimp contacts have insulation support, stainless steel springs and 3 plating options.
Spec
- Quantity:1bag(1000pieces)
- G***er : Female
- For Use With : AMPMODU Locking Clip Housing
- Series : AMPMODU
- Minimum Wire Size mm² : 0.1mm²
- Termination Method : Crimp
- Contact Plating : Gold
- Maximum Wire Size AWG : 22AWG
- Maximum Contact Resistance : 12mΩ
- Minimum Operating Temperature : -65°C
- Maximum Operating Temperature : +105°C
- CODE No.:164-1693
