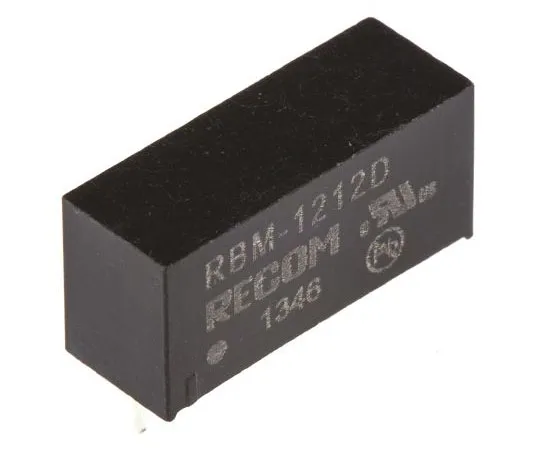

63-7587-13 Recom RBM 1W Isolated DC-DC Converter Through Hole, Voltage in 10.8 → 13.2 V dc, Voltage out ±12V dc RBM-1212D
Product Description
Product Model: 63-7587-13Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7587-13
Product Brand: Recom
Features
- EN60950-1, EN60601-1. Operating temperature is without derating. Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RBM Series. Micro size SIP6 package 3kVdc isolation UL 94V-0 package material Industry standard pinout Efficiency at full load up to 80% Full rated power can be taken from one output
Spec
- Quantity:1set(30pieces)
- Output Voltage : ±12V dc
- Input Voltage Range : 10.8 → 13.2 V dc
- Input Voltage Nominal : 12 V dc
- Isolation Voltage : 3kV
- Power Rating : 1W
- Output Current : ±41mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Package : SIP
- Load Regulation : ±10%
- Maximum Temperature : +85°C
- Series : RBM
- CODE No.:166-8825
