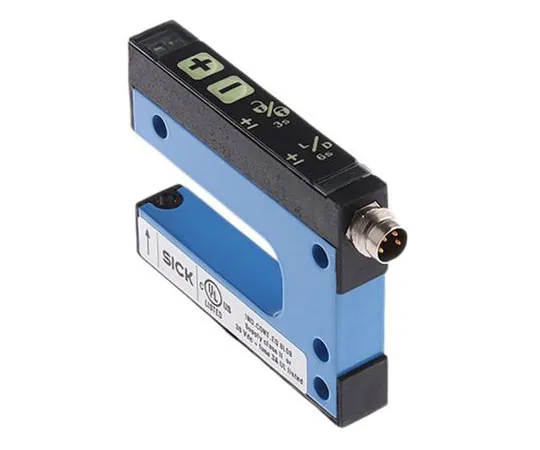

63-7586-36 Sick WF Photoelectric Sensor Through Beam (Fork) 15 mm Detection Range NPN/PNP WF15-40B410
Product Description
Product Model: 63-7586-36Product Brand: Sick Features W […]
Contact Us
Product Details
Product Model: 63-7586-36
Product Brand: Sick
Features
- WF2 and WF15, Multi-path potentiometer 2 or 15mm Gap. Mounting holes 4.2 diameter. Aluminium housing protected to IP65 LED indication Operating temperature range –20 → +60 deg°C Ideal for label webbing detection, print runs and counting Light and dark switching by connection Short circuit protection and interference pulse suppression 10% ripple M8, four-pin plug-in connector
Spec
- Quantity:1piece
- Sensor Style : Fork
- Detection Type : Through Beam (Fork)
- Detection Range : 15 mm
- Output Type : NPN/PNP
- Electrical Connection : 4-Pin M8 Connector
- Maximum DC Voltage : 30V
- Light Source : Infrared
- IP Rating : IP65
- Maximum Current : 100 mA
- Response Time : 100 μs
- Housing Material : Aluminium
- Maximum Operating Temperature : +60°C
- CODE No.:493-7322
