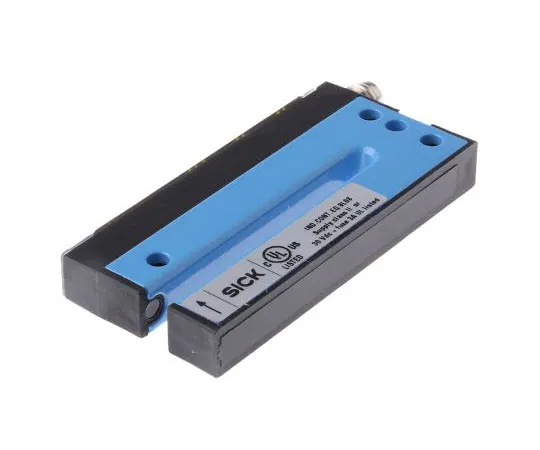

63-7586-33 Sick WF Photoelectric Sensor Through Beam (Fork) 5 mm Detection Range PNP WF5-60B416
Product Description
Product Model: 63-7586-33Product Brand: Sick Features W […]
Contact Us
Product Details
Product Model: 63-7586-33
Product Brand: Sick
Features
- WF3 and WF5 Teach-in 3 or 5mm Gap. Mounting holes 4.2 diameter. Aluminium housing protected to IP65 LED indication Operating temperature range –20 to +60 deg°C Standard and fine setting using teach-in function Teach-in via button or remote wire Light/dark switching Short circuit protection and interference pulse suppression 10% ripple M8, four-pin plug-in connector Dimensions (mm):12 x 80mm WD, 37.5 H(3mm), 39.5 H(5mm)
Spec
- Quantity:1piece
- Sensor Style : Fork
- Detection Type : Through Beam (Fork)
- Detection Range : 5 mm
- Output Type : PNP
- Electrical Connection : 4-Pin M8 Connector
- Maximum DC Voltage : 30V
- Light Source : Infrared
- IP Rating : IP65
- Maximum Current : 100 mA
- Response Time : 100 μs
- Housing Material : Aluminium
- Maximum Operating Temperature : +60°C
- CODE No.:493-7293
