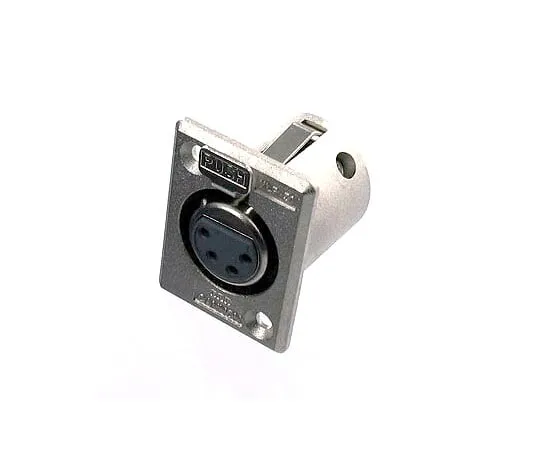

63-3166-34 Microphone Connector 4 PIN Female XLR431
Product Description
Product Model: 63-3166-34Product Brand: ITT Cannon Feat […]
Contact Us
Product Details
Product Model: 63-3166-34
Product Brand: ITT Cannon
Features
- About the Canon Connector
- Commonly referred to as the Canon Connector or the XLR Connector, many connectors are ***d for audio (especially for professionals) balance connections.
- Therefore, even with three pins, one pin is enough for one channel.
- The basic assignment is 1-GND2-HOT3-COLD. However, you need to be careful beca*** in the world, the number 2 and number 3 are reversed.
- In addition, a female is generally ***d for the input side (equipment panel side) and a male is ***d for the cable side.
- Note that this connector is a 4-pin type ***d for power supply, not a typical 3-pin type.
Spec
- Connector configuration: socket receptacle
- Number of pins: 4
- Terminal: Solder terminal
- Rated voltage: 133 VAC
- Current rating: 10 A
- Withstand voltage: 1400 VAC
- Insulation resistance: 1000 megohms or more (500 VDC)
- Contact resistance: 5 m.OMEGA. or less
