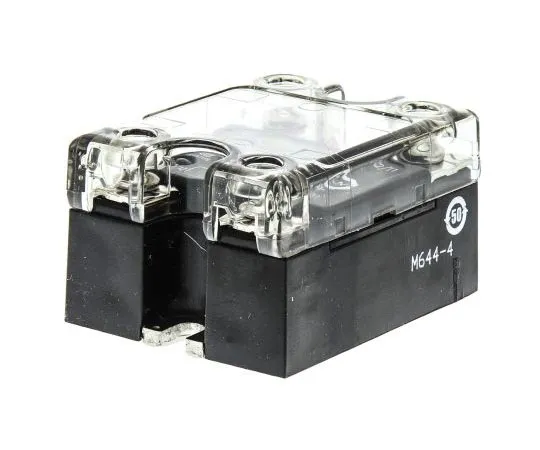

63-7583-52 Sensata / Crydom 50 A rms Solid State Relay, Zero Cross, Panel Mount, SCR, 280 V rms Maximum Load CWD2450
model:
63-7583-52
brand:
Sensata / Crydom
Product Description
Product Model: 63-7583-52Product Brand: Sensata / Crydo […]
Contact Us
Product Details
Product Model: 63-7583-52
Product Brand: Sensata / Crydom
Features
- UL, VDE. Derating will limit the maximum load current at temperatures above 25 °C. Models with internal overvoltage protection are not suitable for capacitive loads. Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet. CW Series. Low off-state leakage SCR Output LED Status Indicator Panel Mount Integrated removable fingerproof cover Universal connectors EMC compliant design
Spec
- Quantity:1piece
- Minimum Load Current : 0.15 A
- Maximum Load Current : 50 A rms
- Mounting Type : Panel Mount
- Maximum Load Voltage : 280 V rms
- Maximum Control Voltage : 32 V
- Switching Type : Zero Cross
- Output Device : SCR
- Maximum Turn On Time : 1/2 cycle
- Dimensions : 45.7 x 58.4 x 33mm
- Minimum Operating Temperature : -40°C
- CODE No.:491-4868
