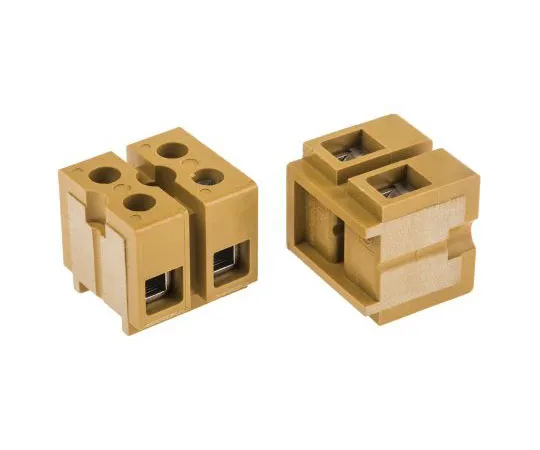

63-7583-08 Weidmuller SAK Non-F***d Terminal Block, 2 Way/Pole, Screw Terminals, 22 → 10 AWG Screw, Melamine, 690 V 7906220000
Product Description
Product Model: 63-7583-08Product Brand: Weidmuller Feat […]
Contact Us
Product Details
Product Model: 63-7583-08
Product Brand: Weidmuller
Features
- II 2 GD EEx e II. SIRA01 ATEX3249U. UL listed, CSA certified. Weidmüller Terminal Block. Terminal blocks moulded in high grade melamine. Each termination consists of a nickel plated brass yoke, two zinc plated steel screws and two stainless steel leaf springs. The leaf springs protect conductors when the screw termination is tightened. Features and Benefits. Multi-pin terminal strip Screw connection Each through termination accepts both stranded and solid conductors 0.5 mm² to 6 mm² Recomm***ed insulation stripping length 8 mm
Spec
- Quantity:1bag(5pieces)
- Series : SAK
- Number of Ways : 2
- Mounting Type : Screw
- Current Rating : 41A
- Termination Method : Screw
- Wire Size : 22 → 10 AWG
- Material : Melamine
- Colour : Beige
- Minimum Operating Temperature : -60°C
- Maximum Operating Temperature : +130°C
- Contact Material : Brass, Stainless Steel
- Contact Plating : Nickel
- Hazardous Area Certification : ATEX
- CODE No.:489-5161
