Electronic/Electrical Parts and Controll Equipments

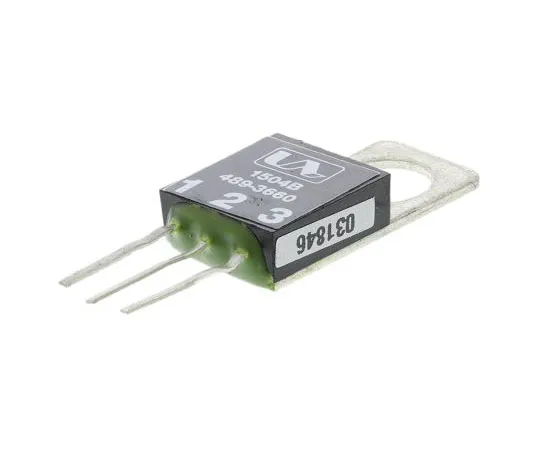

63-7582-71 United Automation, 230 V Voltage Regulator, 15A, 1-Channel, Adjustable 3-Pin CSR1504B CSR1504B
model:
63-7582-71
brand:
United Automation
Product Description
Product Model: 63-7582-71Product Brand: United Automati […]
Contact Us
Product Details
Product Model: 63-7582-71
Product Brand: United Automation
Features
- CSR Power Regulator 6A, 10A & 15A, United Automation. United Automation CSR Power Regulator integrated chips (IC) control single phase mains driven loads of 6A, 10A and 15A. The Solid-state phase controlled power regulator needs external 220 k or 250 k linear potentiometers (not supplied) and controls the power into a resistive load from 0% to 98%. Applications include resistive heating elements like quartz lamps, ovens and dryers as well as some inductive loads such as transformers, fans and motors.. Transistor style housing with isolated heat sink tab
Spec
- Quantity:1piece
- Output Voltage : 230 V
- Maximum Output Current : 15A
- Output Type : Adjustable
- Mounting Type : Through Hole
- Maximum Input Voltage : 230 V
- Pin Count : 3
- Minimum Operating Temperature : 0 °C
- Maximum Operating Temperature : +70 °C
- Number of Outputs : 1
- Width : 7.6mm
- CODE No.:489-3660
