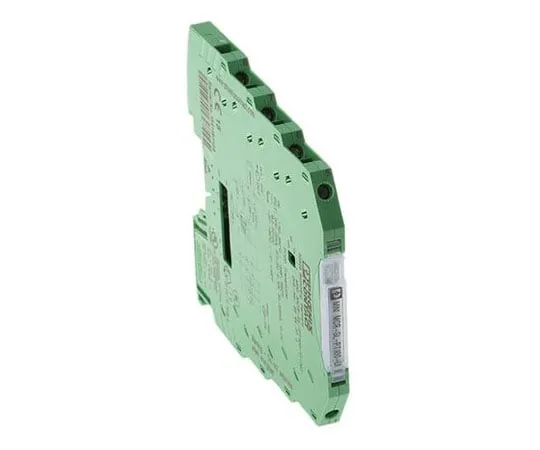

63-7582-60 Phoenix Contact MINI MCR-SL-PT100-UI-NC, Current, Voltage Output, Configurable Transducer 2864273
model:
63-7582-60
brand:
Phoenix Contact
Product Description
Product Model: 63-7582-60Product Brand: Phoenix Contact […]
Contact Us
Product Details
Product Model: 63-7582-60
Product Brand: Phoenix Contact
Features
- Configurable PT100 Transducer. Can be mounted on DIN rail individually or with other units. Housing is 102.5mm high by 6.2mm wide. The performance specifications are similar to standard sized MCR products. Input, 2,3 or 4 wire PT100 Temperature range –150 to +850°C Output, 4-20mA, 0-20mA, 20-4mA, 20-0mA, 0-5V, 1-5V, 0-10V, 10-0V Output configurable if sensor error detected
Spec
- Quantity:1piece
- Input Type : Current
- Output Type : Current, Voltage
- Signal Conditioner Type : Isolation
- Input Range : 1 mA
- Output Range : 0 → 10 V, 0 → 20 mA
- Supply Voltage : 24 V dc
- Mounting Type : DIN Rail
- Sensor Compatibility : RTD
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +65°C
- Series : MINI MCR-SL-PT100-UI-NC
- CODE No.:489-2875
