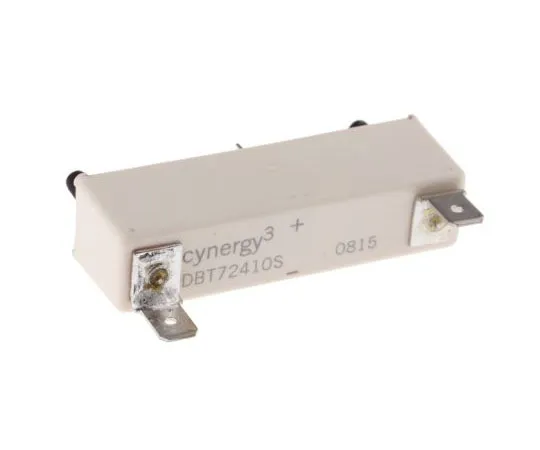

63-7582-02 SP-NC Reed Relay, 2 A, 24V dc DBT72410S
Product Description
Product Model: 63-7582-02Product Brand: Cynergy3 Featur […]
Contact Us
Product Details
Product Model: 63-7582-02
Product Brand: Cynergy3
Features
- Vacuum Encapsulated D Series, Panel Mount. 50W switching 7kVdc or ac peak switching voltage 10kV contact isolation 17kV contact to coil isolation Insulation resistance 10 10 ohms Contact resistance 250 mΩ max Operate time (inc. bounce) 3ms Release time (inc. bounce) 2ms Panel mount with 0.25in. male terminals Suitable for high voltage test equipment and power supplies
Spec
- Quantity:1piece
- Contact Configuration : SP-NC
- Coil Voltage : 24V dc
- Mounting Type : Panel Mount
- Maximum Switching Current AC : 2 A
- Maximum Switching Current DC : 2 A
- Maximum Switching Voltage AC : 7000V
- Maximum Switching Voltage DC : 7000V dc
- Coil Resistance : 925 Ω
- Length : 60mm
- Height : 18.5mm
- Depth : 15.8mm
- Dimensions : 60 x 15.8 x 18.5mm
- Isolation Coil To Contact : 10kV ac/dc
- Minimum Operating Temperature : -20°C
- CODE No.:488-7671
