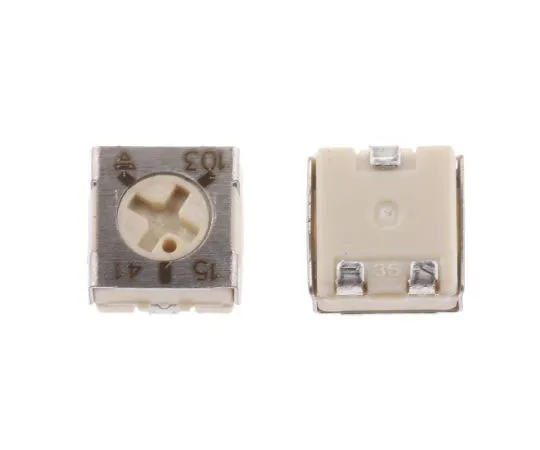

63-7580-77 10kΩ SMD Trimmer Potentiometer 0.25W Top Adjust Vishay TS53 Series TS53YJ103MR10
Product Description
Product Model: 63-7580-77Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7580-77
Product Brand: Vishay
Features
- 250mW 5mm sealed TS53YJ series. The TS53 trimming potentiometer has been designed for surface mount applications and offers volumetric efficiency (5 mm x 5 mm x 2.7 mm) with high performance and stability. The TS53 design is suitable for either manual or automatic operation, and can withstand wave, and reflow soldering techniques. Small size for optimum packing density Low temperature coefficient and contact resistance variation Manual and automatic operation Fully sealed
Spec
- Quantity:1set(500pieces)
- Maximum Resistance : 10kΩ
- Mounting Type : Surface Mount
- Number of Turns : 1
- Orientation : Top Adjust
- Power Rating : 0.25W
- Series : TS53
- Termination Style : J-Hook
- Tolerance : ±20%
- Temperature Coefficient : ±100ppm/°C
- Shaft Diameter : 2.5 mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:167-9442
