63-7580-47 STMicroelectronics 40V 1A, Schottky Diode, 2-Pin DO-41 1N5819 1N5819
model:
63-7580-47
brand:
STMicroelectronics
Product Description
Product Model: 63-7580-47Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-7580-47
Product Brand: STMicroelectronics
Features
- STMicroelectronics 1N5817/8/9 Low Drop Power Schottky Rectifiers. The Vishay 1N5817, 1N5818 and 1N5819 are a family of low-drop 1A Schottky rectifier diodes. They are designed for switch-mode power supplies and high frequency DC-to-DC converters. Features: Fast switching Low forward voltage drop Small conduction loss Very low switching loss Where are they ***d? 1N5817-1N5819 are designed for low voltage, high frequency inverters, freewheeling, polarity protection and small battery chargers. What is the operating junction temperature? -65°C to +150°C Versions Available: 1N5817 - 20V 1N5818 - 30V 1N5819 - 40V
Spec
- Quantity:1bag(2000pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 40V
- Mounting Type : Through Hole
- Package Type : DO-41
- Diode Type : Schottky
- Pin Count : 2
- Maximum Forward Voltage Drop : 900mV
- Diameter : 2.72mm
- Peak Non-Repetitive Forward Surge Current : 25A
- CODE No.:920-9085
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7016-83 3.8 V Blue LED PLCC 2 SMD, Lite-On LTST-M140TBKT LTST-M140TBKT
model: 63-7016-83
brand: Lite-On
Electronic/Electrical Parts and Controll Equipments

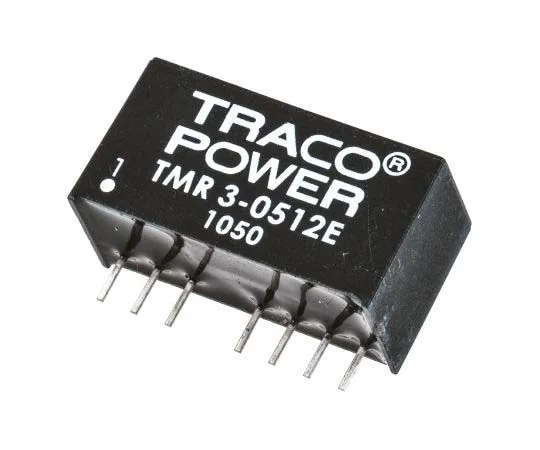

63-7772-74 TRACOPOWER TMR 3E 3W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 9 V dc, Voltage out 12V dc TMR 3-0512E
