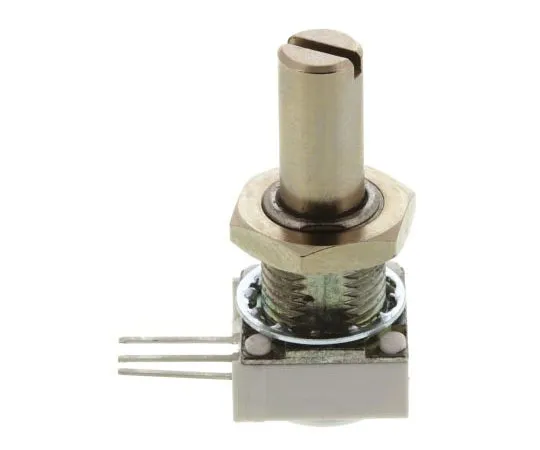

63-7578-27 Vishay 1 Gang Rotary Cermet Potentiometer with a 6.35 mm Dia. Shaft, 1MΩ, ±10%, 1W, Linear 14910F0GJSX10105KA 14910F0GJSX10105KA
Product Description
Product Model: 63-7578-27Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7578-27
Product Brand: Vishay
Features
- metal lock washer and nut. 12mm 1W Cermet. Single turn potentiometer Single track, dual track or single track switched versions Excellent stability Smooth feel Temperature stable Panel and PCB mountable Robust construction Metal bush and shaft Common lead is pin 3 on switched products
Spec
- Quantity:1box(50pieces)
- Potentiometer Type : Rotary
- Maximum Resistance : 1MΩ
- Number of Gangs : 1
- Number of Turns : 1
- Power Rating : 1W
- Electrical Taper : Linear
- Element Material : Cermet
- Mounting Type : Panel Mount, Through Hole
- Termination Style : Pin
- Shaft Length : 22.2mm
- Shaft Diameter : 6.35 mm
- Tolerance : ±10%
- Series : 149
- CODE No.:167-9640
