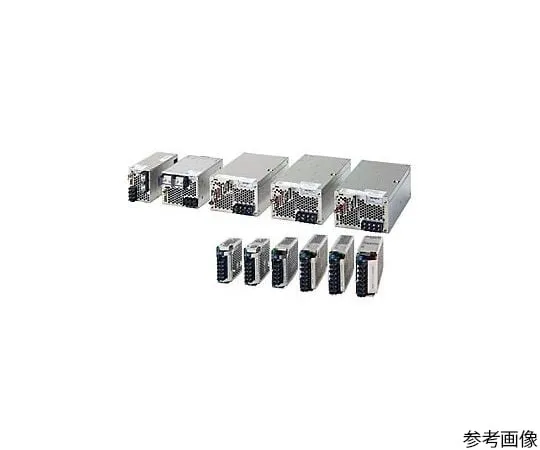

64-5667-94 Unit Type with Power Cover 80 W 5 V HWS80A-5A
Product Description
Product Model: 64-5667-94Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 64-5667-94
Product Brand: TDK-Lambda Corporation
Features
- Small size, high efficiency, improved efficiency under light load. 4% improvement over the previous model and reduced standby power consumption
- Uniform height package (H: 82 mm) that makes effective *** of built-in space
- Can be mounted with 2U rack mount for FA measurement
- Live-power terminal Safe terminal that covers screws and prevents screws from falling out
Spec
- (Schematic specifications)
- Input voltage range 85 ~ 265 VAC (47 Hz to 63 Hz) continuous input
- DC 120 ~ 370 V continuous input
- Output voltage 5V
- Cooling method Natural air cooling
- Operating ambient temperature -10 to + 70 degrees C (-10 to + 50 degrees C: 100%) (for + 60 to + 70 degrees C, see individual specifications)
- Volumetric input to FG: 2 kVAC, input to output: 3 kVAC, output to FG: 500 VAC 1 minute each
- Certified as safety standard UL 60950 -1, CSA 22.2 No. 60950 -1, EN 60950 -1
- CE Marking Compliant, UL 508 Compliant, Electrical Appliance and Material Safety Law Compliant
- Complies with Harmonic Current Regulation EC 61000 -3 -2
- Features Overvoltage protection, Overcurrent protection (common to models)
- remote sensing
- RoHS compliant
