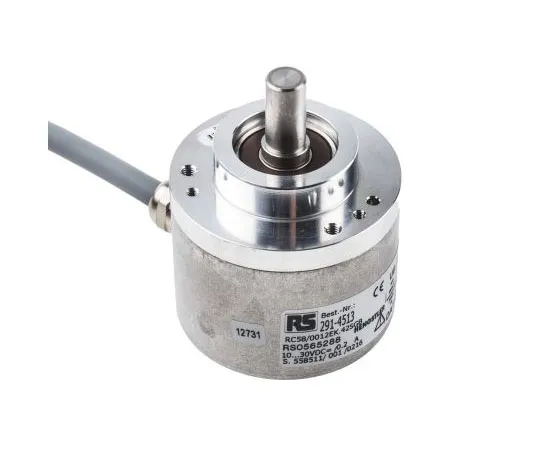

63-7572-57 Hengstler Absolute Encoder 10000rpm Solid 10 → 30 V dc RC58/0012EK.42SGB
Product Description
Product Model: 63-7572-57Product Brand: Hengstler Featu […]
Contact Us
Product Details
Product Model: 63-7572-57
Product Brand: Hengstler
Features
- Rotary transducer AC58 - absolute, single turn, 58 mm. "ACURO Industry" series Single turn design Integrated safety and monitoring system Magnetically insensitive Maintenance-free as no battery Compact dimensions Preset key Diagnostic LEDs
Spec
- Quantity:1piece
- Encoder Technology : Absolute
- Maximum Revolutions : 10000rpm
- Output Signal Type : Gray, SSI
- Shaft Type : Solid
- Supply Voltage : 10 → 30 V dc
- Resolution : 12 bit
- IP Rating : IP64, IP67
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +100°C
- Series : AC58
- CODE No.:480-0517
