Features

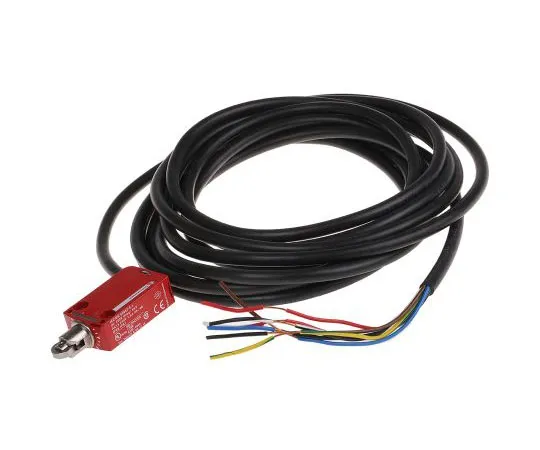

• CSA C22-2 No 14, EN 1088, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508. UL, CSA. With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508. XCSM Series, Safety Limit Switches. The Schneider XCSM series of miniature/compact industrial limit switches are designed for monitoring access doors and/or guards on machines with low inertia and also on machines with high inertia, when ***d in conjunction with actuator operated guard switches. When ***d on their own they are always installed in ‘positive mode ‘, but if combined in pairs then one switch in ‘positive mode ‘ and the other switch in ‘negative mode ‘. Available with a linear movement (plunger) or rotary movement (lever). N/C contacts with positive opening operation Snap action contacts Miniature/compact red metal housing, pre-cabled Plastic protective cover, secured by 5-lobe socket head safety screw Head on the rotary movement switch (lever) is adjustable in 15° steps throughout 360° Linear movement switch (plunger) has an on-*** approach only IP66/67 protection in accordance with EN/IEC 60529 ROHS compliant
