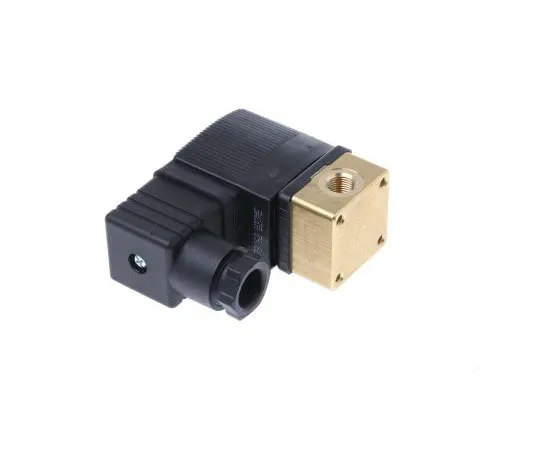

63-7571-72 Burkert Solenoid Valve 126187, 2 port , NC, 24 V dc, 1/8in 126187
Product Description
Product Model: 63-7571-72Product Brand: Burkert Feature […]
Contact Us
Product Details
Product Model: 63-7571-72
Product Brand: Burkert
Features
- Series 255 Two Way Normally Closed Solenoid Valves. For *** with water, steam, air, gasses, hot oils and hydrocarbons, alkaline washing agents Heat-resistant slip-over epoxy encapsulated coil Brass body and PTFE Seal Three-pin DIN connector rated to IP65 can be positioned 360° in 90° increments Fluid temperature range to 180°C (130°C with fitted cable plug) Ambient temperature +55°C maximum
Spec
- Quantity:1piece
- Supply Voltage : 24 V dc
- Number of Ports : 2
- Operation : Direct
- Connection : 1/8 in G Female
- Connection Size : 1/8in
- Default Valve Position : NC
- Suitable Applications : Steam, Water
- Type : 2/2
- Orifice Diameter : 3mm
- Body Material : Brass
- Maximum Working Pressure : 6 bar
- Operating Temperature Range : 0 → +55 °C
- Minimum Operating Temperature : 0°C
- Maximum Operating Temperature : +55°C
- Servo Assist : Yes
- CODE No.:478-7357
