Features

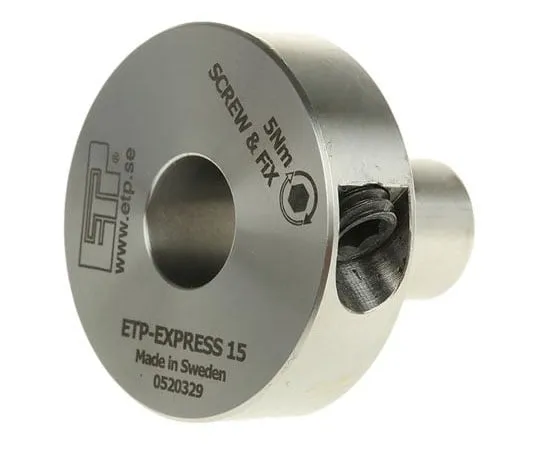

• To select the correct bush and hub the external diameter of the outer hub should be sufficient to withstand the stresses exerted. To calculate the size, multiply the bush outside diameter by the relevant factor: Steel x 1.5, Cast Iron x 2.0, Aluminium x 2.5. If the selected hub diameter is greater than or equal to the calculated size, then the selected size is suitable. ETP Express Locking Bushes. Unique single screw hydraulic shaft to hub locking bush offering infinite radial and axial adjustment. Designed for ultra-fast mounting of gears, pulleys, sprockets etc where frequent operations and very high accuracy are required. Very high concentricity and self-centering Ultra-fast, locking and un-locking with single pressure screw Radial pressure screw for easy access Automatic release when screw is loosened Ideal for applications with very small diameter hubs H7-h7 hub bore and shaft tolerances Radial concentricity 0.03mm Temperature range -30 to +85°C, refer to technical dept. if ambient temperature is below 0°C
