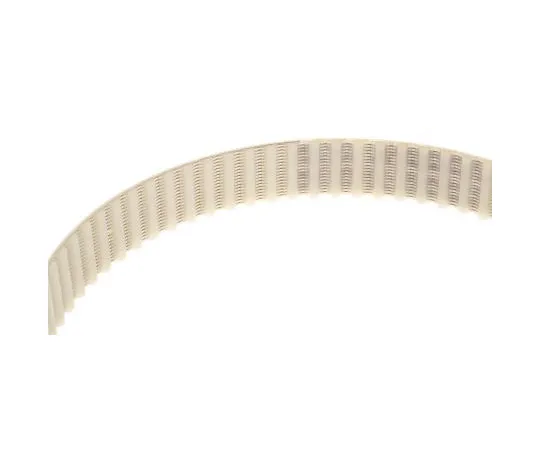

63-7569-44 Contitech 16 / T5 / 390 SS, Timing Belt, 78 Teeth, 390mm Length X 16mm Width 16 / T5 / 390 SS
Electronic/Electrical Parts and Controll Equipments

63-7569-44 Contitech 16 / T5 / 390 SS, Timing Belt, 78 Teeth, 390mm Length X 16mm Width 16 / T5 / 390 SS

model: 63-7569-44
brand: Contitech

Product Description

Product Model: 63-7569-44Product Brand: Contitech Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7569-44
Product Brand: Contitech

Features

  • Metric Pitch Timing Belts – Contitech Syncroflex®. Wear-resistant polyurethane contilan belt with high grade wire tension members. Resulting bond gives high flank load capacity combined with low elastic elongation. Suitable for all kinds of drives beca*** of flexibility of belt material and high flexural strength of the steel tension members. Belt speed up to 80m/s Up to 40000rpm Temperature range -30°C to +80°C Efficient up to 98% Maintenance-free Resistant to oils, grease and petrol Power rating 0.5kW (2.5mm pitch) Power rating 5.0kW (5mm pitch)

Spec

  • Quantity:1piece
  • Length : 390mm
  • Width : 16mm
  • Pitch : 5mm
  • Number of Teeth : 78
  • Material : Polyurethane
  • Maximum Speed : 80m/s
  • Tooth Height : 1.2mm
  • Minimum Operating Temperature : -30°C
  • Maximum Operating Temperature : +80°C
  • CODE No.:474-6053
