Electronic/Electrical Parts and Controll Equipments

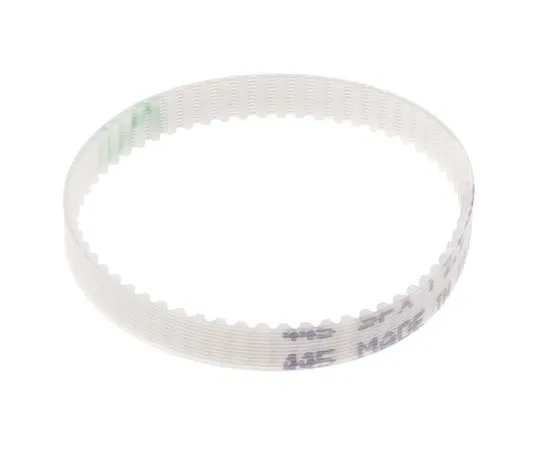

63-7569-17 Contitech 6 / T2.5 / 160 SS, Timing Belt, 64 Teeth, 160mm Length X 6mm Width 6 / T2.5 / 160 SS
Product Description
Product Model: 63-7569-17Product Brand: Contitech Featu […]
Contact Us
Product Details
Product Model: 63-7569-17
Product Brand: Contitech
Features
- Metric Pitch Timing Belts – Contitech Syncroflex®. Wear-resistant polyurethane contilan belt with high grade wire tension members. Resulting bond gives high flank load capacity combined with low elastic elongation. Suitable for all kinds of drives beca*** of flexibility of belt material and high flexural strength of the steel tension members. Belt speed up to 80m/s Up to 40000rpm Temperature range -30°C to +80°C Efficient up to 98% Maintenance-free Resistant to oils, grease and petrol Power rating 0.5kW (2.5mm pitch) Power rating 5.0kW (5mm pitch)
Spec
- Quantity:1piece
- Length : 160mm
- Width : 6mm
- Pitch : 2.5mm
- Number of Teeth : 64
- Material : Polyurethane
- Maximum Speed : 80m/s
- Tooth Height : 0.7mm
- Minimum Operating Temperature : -30°C
- Maximum Operating Temperature : +80°C
- CODE No.:474-5000
