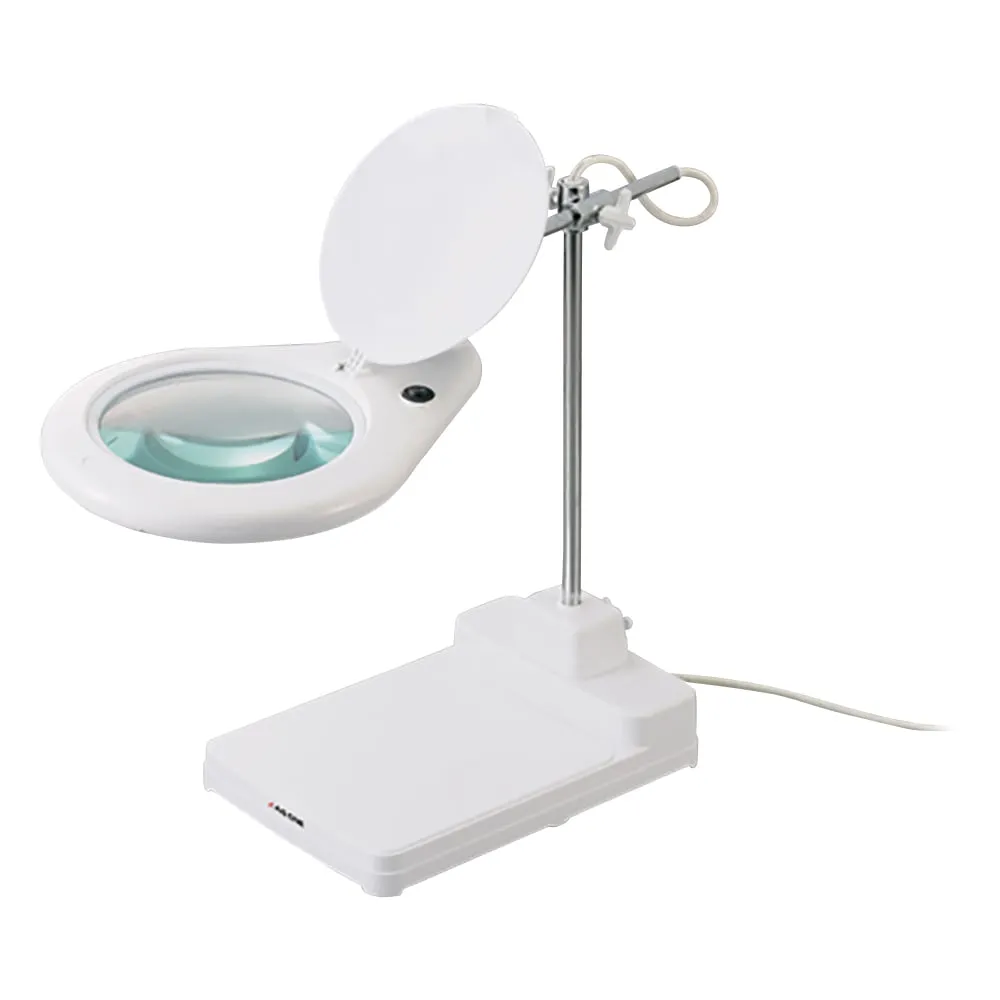

1-2962-01 Lighting Magnifier Stand 8062D3LED
Product Description
Product Model: 1-2962-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-2962-01
Product Brand: AS ONE Corporation
Features
- The lens can be fixed at any position such as front/back, up/down, or inclined.
- Uses a white glass lens that does not change the color of the object.
- The light of the circle light is not uneven, making shadows difficult, and the colors are vivid.
- It ***s a large lens that is easy to see with binoculars, so you can observe even large workpieces at once.
Spec
- Light source: LED x 84 pieces
- Power supply: AC100V 50/60Hz
- Power cord length: 1.8m
- Material: Body head/PC (polycarbonate), Body base/SPCC (steel mesh plate), Lens/glass
- Size: Body/600 x 250 x 430mm, Base/220 x 330mm
- Weight: Approx 5kg
- Magnification: 2.0 x
- Lens diameter (φmm): 190
- Model number: 8062D3LED
