Electronic/Electrical Parts and Controll Equipments

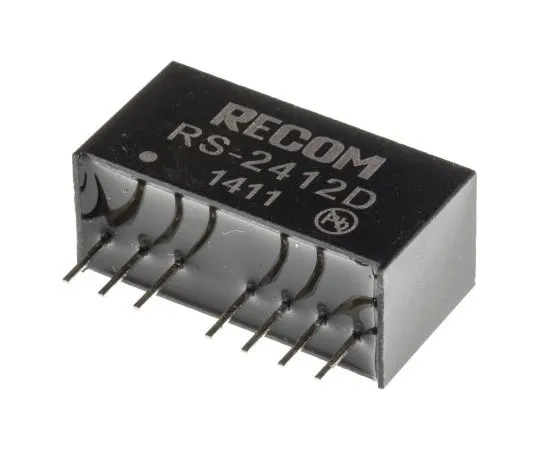

63-7568-33 Recom RS 2W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out ±12V dc RS-2412D
Product Description
Product Model: 63-7568-33Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7568-33
Product Brand: Recom
Features
- EN60950-1. Operating temperature is without derating. Recom 2W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RS Series. High power-density, an industrial temperature range of -40° to +85°C. Additional features such as Remote-On-Off control make these converters ideal for highly sophisticated industrial designs. 2:1 wide input range Regulated outputs 1kVdc isolation Continuous short circuit protection Low noise UL94V-0 package material 83% efficiency SIP 8 package
Spec
- Quantity:1set(22pieces)
- Output Voltage : ±12V dc
- Input Voltage Range : 18 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 500V ac
- Power Rating : 2W
- Output Current : ±83mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Efficiency : 83%
- Package : SIP
- Load Regulation : ±0.5%
- Maximum Temperature : +85°C
- Series : RS
- CODE No.:166-8715
