Electronic/Electrical Parts and Controll Equipments

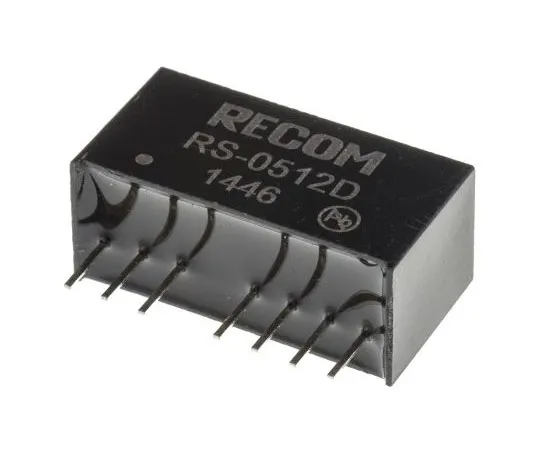

63-7568-27 Recom RS 2W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 9 V dc, Voltage out ±12V dc RS-0512D
Product Description
Product Model: 63-7568-27Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7568-27
Product Brand: Recom
Features
- EN60950-1. Operating temperature is without derating. Recom 2W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RS Series. High power-density, an industrial temperature range of -40° to +85°C. Additional features such as Remote-On-Off control make these converters ideal for highly sophisticated industrial designs. 2:1 wide input range Regulated outputs 1kVdc isolation Continuous short circuit protection Low noise UL94V-0 package material 83% efficiency SIP 8 package
Spec
- Quantity:1piece
- Output Voltage : ±12V dc
- Input Voltage Range : 4.5 → 9 V dc
- Input Voltage Nominal : 5 V dc
- Isolation Voltage : 500V ac
- Power Rating : 2W
- Output Current : ±83mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Depth : 11.1mm
- CODE No.:473-5233
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5115-82 RS PRO Grey 1U Cantilever Shelf, 150mm x 483mm 802-0279
model: 63-5115-82
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

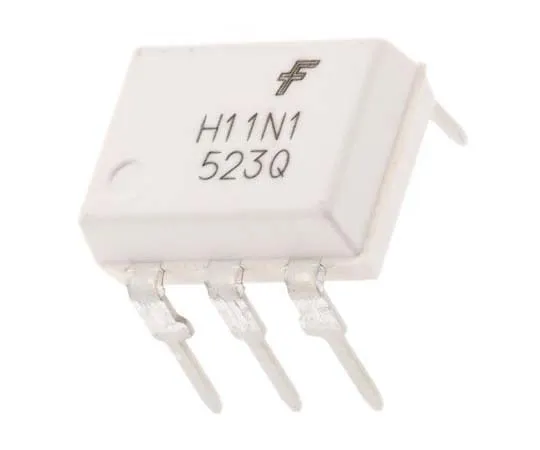

63-7812-50 ON Semiconductor, H11N1M DC Input Schmitt Trigger Output Optocoupler, Through Hole, 6-Pin DIP H11N1M
model: 63-7812-50
brand: ON Semiconductor
Electronic/Electrical Parts and Controll Equipments

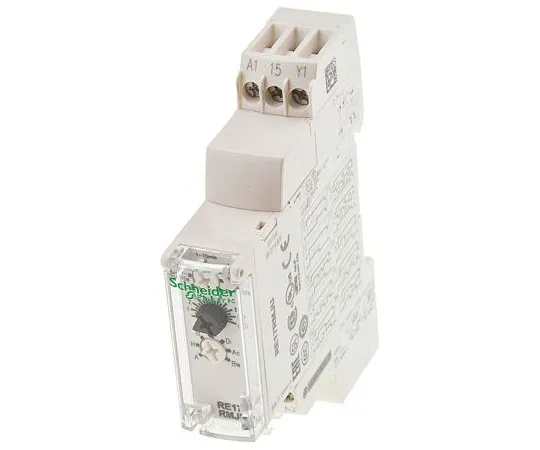

63-7988-55 Schneider Electric Multi Function Timer Relay, Screw, 0.1 s → 100 h, SPDT, 2 Contacts, SPDT, 12 V ac/dc RE17RMJU
