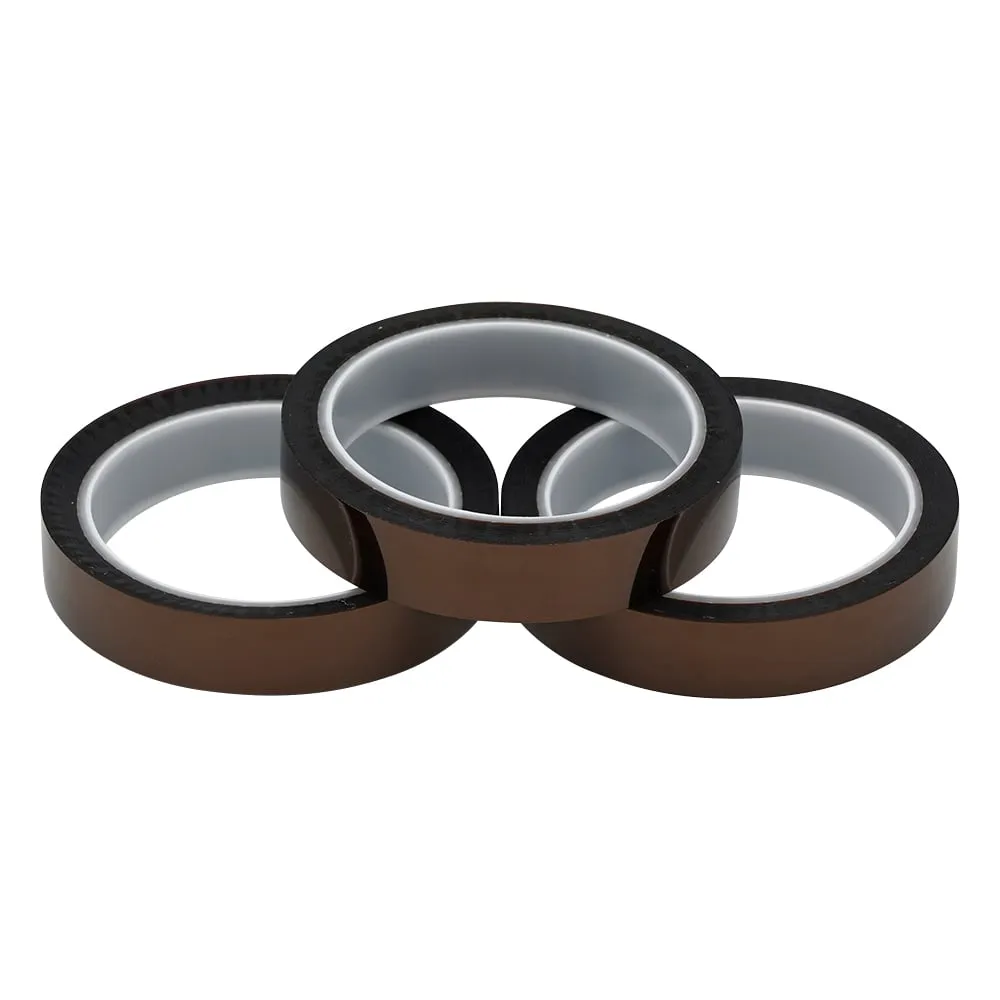

1-3993-06 Polyimide Tape 0.069mm x 19.0mm x 33m WS-190069-3
Product Description
Product Model: 1-3993-06Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-3993-06
Product Brand: AS ONE Corporation
Features
- For PCB masking and insulation and protection of transformers, aviation parts, electric vehicles and special electronic parts.
Spec
- Materials: Substrate/PI (polyimide), Adhesive/Silicon-based
- Heat-resistant temperature: 205 degrees Celsius (3 hours)
- Insulation resistance: 1 x 10 ^ 7 megohms
- Withstand voltage: 6000V
- Tensile strength: 5kgf/cm
- Elongation: 63%
- Flame Retardant: UL510 compliant
- Thickness: 0.069mm
- Width x Length: 19.0mm x 33m
- Quantity: 1 box (3 rolls)
- RoHS3 (EU)2015/863 Certificates can be issued
