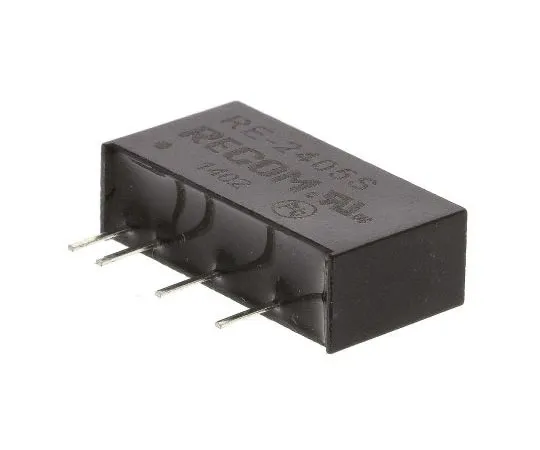

63-7568-04 Recom RE 1W Isolated DC-DC Converter Through Hole, Voltage in 21.6 → 26.4 V dc, Voltage out 5V dc RE-2405S
Product Description
Product Model: 63-7568-04Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7568-04
Product Brand: Recom
Features
- Operating temperature is without derating. Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RE/RB Series. Single ; dual output options 1kVdc isolation UL94V-0 package material SIP7 package with industry standard pin-outs
Spec
- Quantity:1set(25pieces)
- Output Voltage : 5V dc
- Input Voltage Range : 21.6 → 26.4 V dc
- Input Voltage Nominal : 24 V dc
- Power Rating : 1W
- Output Current : 200mA
- Mounting Type : Through Hole
- Number of Outputs : 1
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Depth : 10.2mm
- CODE No.:162-2667
