Features

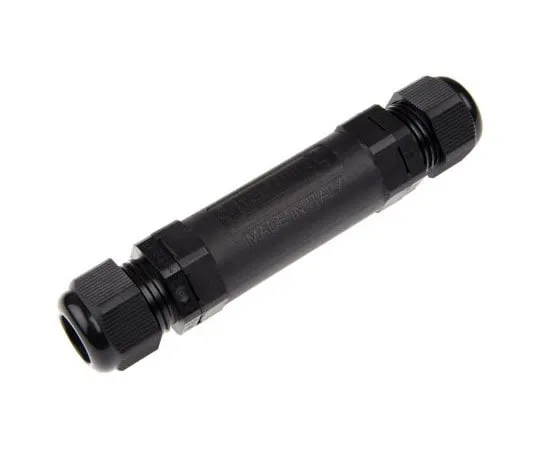

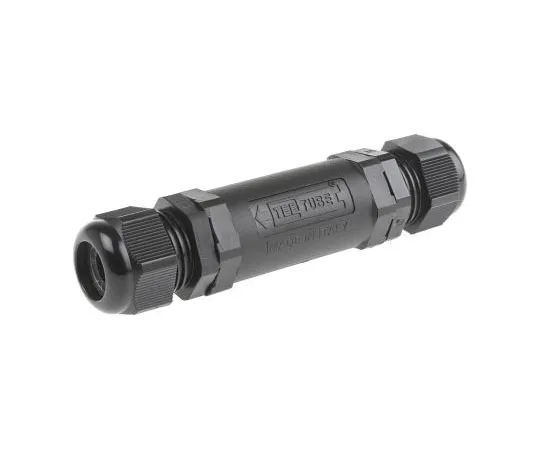

• IP68 Waterproof Cable Connectors. TEETUBE – Versatile cable connector for *** with circular profile cables – indoors or outdoors. The IP68 rating means it can be ***d underwater or underground. The internal terminal block is easily accessible and quickly wired. Available in 3-pole or 5-pole versions. A metal mounting clip is provided. A 2-part gland body sealing ring allows the *** of a wide cable diameter range – see cable diameter acceptance that follows. General features. Tested to IP68 at 5 Bar Temperature rating -20 to +125°C Rated at 450V/32A Barrel in PA 66 with cable gland and terminal block in PA 6 nylon Lengths 115mm (3-pole), 130mm (5-pole) Diameters 26.5mm and 32.0mm respectively Cable gland size M20 (3-pole), M25 (5-pole). Cable diameter acceptance. 3-pole – 5 to 8mm with inner AND outer seal, 8 to 13mm with outer seal ONLY 5-pole – 8 to 12mm with inner AND outer seal, 12 to 17mm with outer seal ONLY
