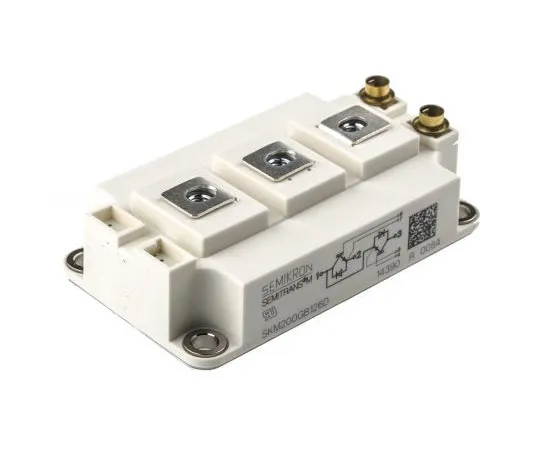

63-7565-03 Semikron SKM200GB126D, SEMITRANS3 , N-Channel Dual Half Bridge IGBT Module, 260 A max, 1200 V, Panel Mount SKM200GB126D
Product Description
Product Model: 63-7565-03Product Brand: Semikron Featur […]
Contact Us
Product Details
Product Model: 63-7565-03
Product Brand: Semikron
Features
- Dual IGBT Modules. A range of SEMITOP® IGBT modules from Semikron incorporating two series-connected (half bridge) IGBT devices. The modules are available in a wide range of voltage and current ratings and are suitable for a variety of power switching applications such as AC inverter motor drives and Uninterruptible Power Supplies. Compact SEMITOP® package Suitable for switching frequencies up to 12kHz Insulated copper baseplate using Direct Bonded Copper technology
Spec
- Quantity:1piece
- Transistor Configuration : Series
- Maximum Continuous Collector Current : 260 A
- Maximum Collector Emitter Voltage : 1200 V
- Maximum Gate Emitter Voltage : ±20V
- Channel Type : N
- Mounting Type : Panel Mount
- Package Type : SEMITRANS3
- Pin Count : 7
- Dimensions : 106.4 x 61.4 x 30mm
- Height : 30mm
- Length : 106.4mm
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -40 °C
- CODE No.:468-2460
