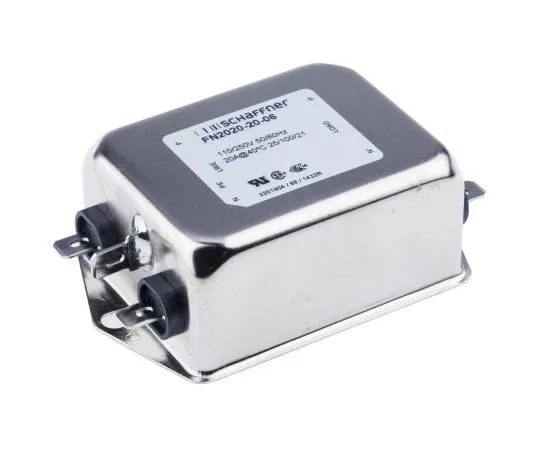

63-7562-91 Schaffner FN2020 Series 20A 250 V ac 400Hz Chassis Mount RFI Filter, with Tab Terminals FN2020-20-06
Product Description
Product Model: 63-7562-91Product Brand: Schaffner Featu […]
Contact Us
Product Details
Product Model: 63-7562-91
Product Brand: Schaffner
Features
- UL recognised component, CSA certified, VDE. FN2020 Series. FN2020 filters are designed for easy and fast chassis mounting and are also avaialble as B versions, the Medical option and A version the Safety option. All FN2020 filters provide a general purpose attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour. Higher phase to neutral capacitance for better differential mode performance Connection by 0.25in Faston terminals
Spec
- Quantity:1piece
- Maximum Current Rating : 20A
- Maximum Voltage Rating : 250 V ac
- Mounting Type : Chassis Mount
- Termination Style : Tab
- Number of Stages : Single Stage
- Operating Frequency : 400Hz
- Length : 54mm
- Depth : 85mm
- Height : 30.3mm
- Dimensions : 54 x 85 x 30.3mm
- Leakage Current : 0.74 mA
- Maximum Operating Temperature : +100°C
- Resistance : 1MΩ
- CODE No.:466-8515
