63-7561-43 Prysmian CW40 LSF M40 Cable Gland Kit LSF40CW
Electronic/Electrical Parts and Controll Equipments

63-7561-43 Prysmian CW40 LSF M40 Cable Gland Kit LSF40CW

model: 63-7561-43
brand: Prysmian

Product Description

Product Model: 63-7561-43Product Brand: Prysmian Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7561-43
Product Brand: Prysmian

Features

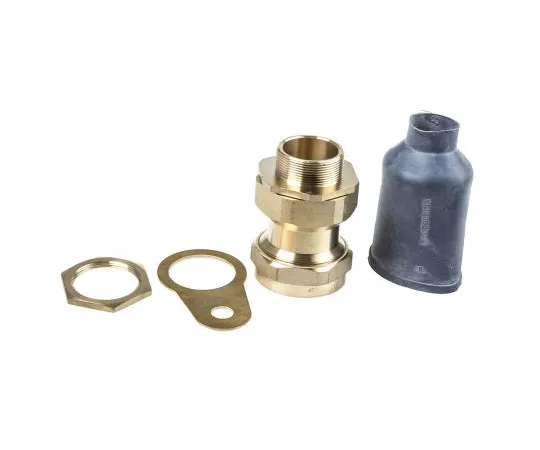

  • Armoured CW Indoor/Outdoor (SWA) LSF Gland Kit. The LSF CW series of cable glands and accessories have low smoke, zero halogen properties and are suitable for both indoor and outdoor ***. The glands can be ***d in a range of weather conditions with an outer seal that grips the cable sheath. The shroud complies with London Underground Ltd Engineering Standard E1042:A2 for fire safety performance. These glands provide clamping of the armour wires for electrical continuity and mechanical retention of the cable. The LSF kits include LSF shroud, CW gland, brass locknut and brass earth tag.. Features and benefits ; Zero Halogen Silicone seals and shrouds ; IP66 Rating ; Outer seal grips sheath of cable ; Separate armour locking ring

Spec

  • Quantity:1piece/set
  • Thread Size : M40
  • Material : Steel
  • Minimum Cable Diameter : 29mm
  • Maximum Cable Diameter : 39.9mm
  • IP Rating : IP66
  • Number of Cores : 1
  • Number of Pieces : 9
  • Fire Behaviour : Low Smoke Zero Halogen (LSZH)
  • Series : CW40 LSF
  • CODE No.:463-4449
