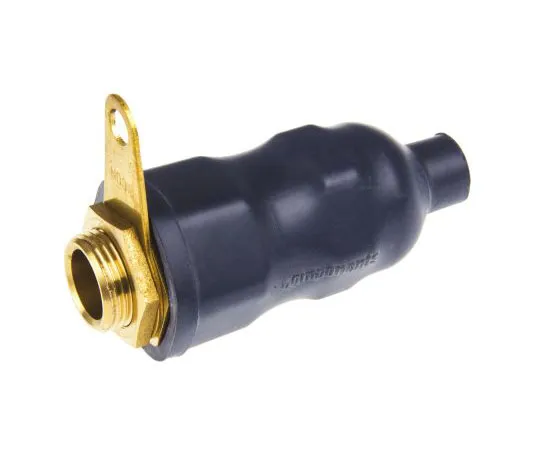

63-7561-41 Prysmian CW20 LSF M20 Cable Gland Kit LSF20CW
Product Description
Product Model: 63-7561-41Product Brand: Prysmian Featur […]
Contact Us
Product Details
Product Model: 63-7561-41
Product Brand: Prysmian
Features
- Armoured CW Indoor/Outdoor (SWA) LSF Gland Kit. The LSF CW series of cable glands and accessories have low smoke, zero halogen properties and are suitable for both indoor and outdoor ***. The glands can be ***d in a range of weather conditions with an outer seal that grips the cable sheath. The shroud complies with London Underground Ltd Engineering Standard E1042:A2 for fire safety performance. These glands provide clamping of the armour wires for electrical continuity and mechanical retention of the cable. The LSF kits include LSF shroud, CW gland, brass locknut and brass earth tag.. Features and benefits ; Zero Halogen Silicone seals and shrouds ; IP66 Rating ; Outer seal grips sheath of cable ; Separate armour locking ring
Spec
- Quantity:1bag(2pieces)
- Thread Size : M20
- Material : Steel
- Minimum Cable Diameter : 11.7mm
- Maximum Cable Diameter : 20.8mm
- IP Rating : IP66
- Number of Cores : 1
- Number of Pieces : 9
- Fire Behaviour : Low Smoke Zero Halogen (LSZH)
- Series : CW20 LSF
- CODE No.:463-4411
