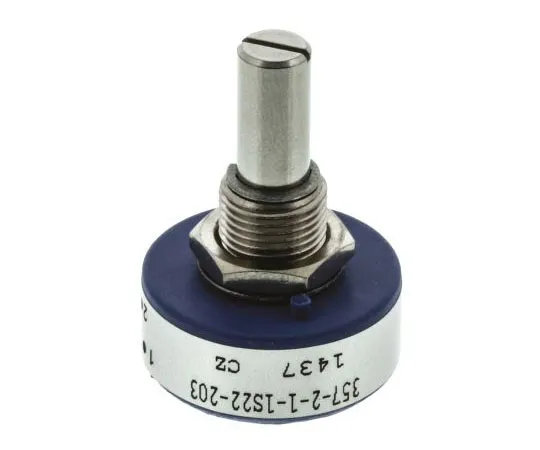

63-7560-44　Vishay 1 Gang Rotary Conductive Plastic Potentiometer with a 6.35 mm Dia. Shaft, 20kΩ, ±20%, 1W, Linear　357B2203MAB251S22
Electronic/Electrical Parts and Controll Equipments

63-7560-44　Vishay 1 Gang Rotary Conductive Plastic Potentiometer with a 6.35 mm Dia. Shaft, 20kΩ, ±20%, 1W, Linear　357B2203MAB251S22

model: 63-7560-44
brand: Vishay
category: Electronic/Electrical Parts and Controll Equipments

Product Description

Product Model: 63-7560-44Product Brand: Vishay Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code
Online Consultation

Product Details

Product Model: 63-7560-44
Product Brand: Vishay

Features

  • 22mm 357 Series Potentiometers. From Vishay, the 357 Series of precision bush potentiometers are commonly ***d in audio applications. With thermoplastic housing and stainless steel *** slotted shaft, the 357 series potentiometer boasts a rotational life of 5 million shaft revolutions. Features and Benefits:. Conductive polymer element Linearity Tolerance ±1% indep***ent Insulation Resistance 1000MΩ @ 500Vdc Electrical Rotation 340° ±3° Running Torque 3.68mNm Mounting Bush Ø9.5mm L.9.5mm

Spec

  • Quantity:1piece
  • Potentiometer Type : Rotary
  • Maximum Resistance : 20kΩ
  • Number of Gangs : 1
  • Number of Turns : 1
  • Power Rating : 1W
  • Electrical Taper : Linear
  • Element Material : Conductive Plastic
  • Mounting Type : Panel Mount
  • Termination Style : Turret
  • Shaft Length : 22.2mm
  • Shaft Diameter : 6.35 mm
  • Tolerance : ±20%
  • Actuator Type : Slotted Shaft
  • CODE No.:460-7469
