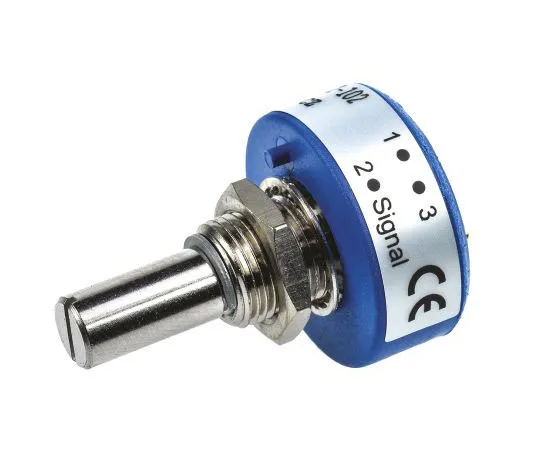

63-7560-27 Vishay 1 Gang Continuous Turn Rotary Conductive Plastic Potentiometer with a 6.35 mm Dia. Shaft, 1kΩ, ±20%, 1W, Linear 357B0102MAB251S22
Product Description
Product Model: 63-7560-27Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7560-27
Product Brand: Vishay
Features
- 22mm 357 Series Potentiometers. From Vishay, the 357 Series of precision bush potentiometers are commonly ***d in audio applications. With thermoplastic housing and stainless steel *** slotted shaft, the 357 series potentiometer boasts a rotational life of 5 million shaft revolutions. Features and Benefits:. Conductive polymer element Linearity Tolerance ±1% indep***ent Insulation Resistance 1000MΩ @ 500Vdc Electrical Rotation 340° ±3° Running Torque 3.68mNm Mounting Bush Ø9.5mm L.9.5mm
Spec
- Quantity:1box(50pieces)
- Potentiometer Type : Rotary
- Maximum Resistance : 1kΩ
- Number of Gangs : 1
- Number of Turns : Continuous
- Power Rating : 1W
- Electrical Taper : Linear
- Element Material : Conductive Plastic
- Mounting Type : Panel Mount
- Termination Style : Turret
- Shaft Length : 22
- Shaft Diameter : 6.35 mm
- Tolerance : ±20%
- Series : 357
- CODE No.:167-9766
