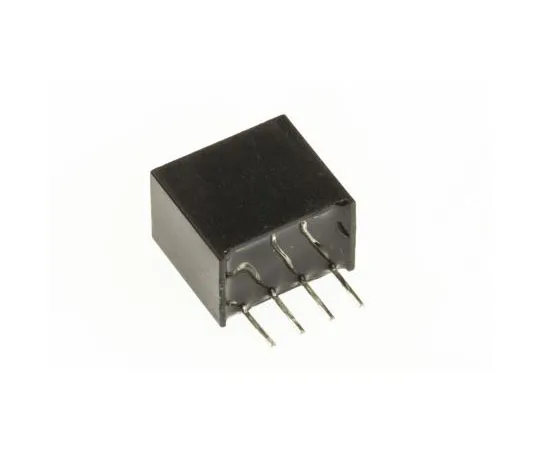

63-7559-71 Recom RI 2W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 5.5 V dc, Voltage out 5V dc RI-0505S
Product Description
Product Model: 63-7559-71Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7559-71
Product Brand: Recom
Features
- Operating temperature is without derating. /P suffix de****s continuous short circuit protection. Recom 2W SIP Single Output Unregulated Isolated DC-DC Converter - RI Series. Industrial standard pin-out No heatsink required SIP4 package High efficiency (80% typ) Capacitor input filter Isolation voltage 1kVdc (min) Voltage; input ±10%, output ±5% UL94V-0 package material
Spec
- Quantity:1set(42pieces)
- Output Voltage : 5V dc
- Input Voltage Range : 4.5 → 5.5 V dc
- Input Voltage Nominal : 5 V dc
- Isolation Voltage : 1kV
- Power Rating : 2W
- Output Current : 400mA
- Mounting Type : Through Hole
- Number of Outputs : 1
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Length : 11.5mm
- CODE No.:166-9047
