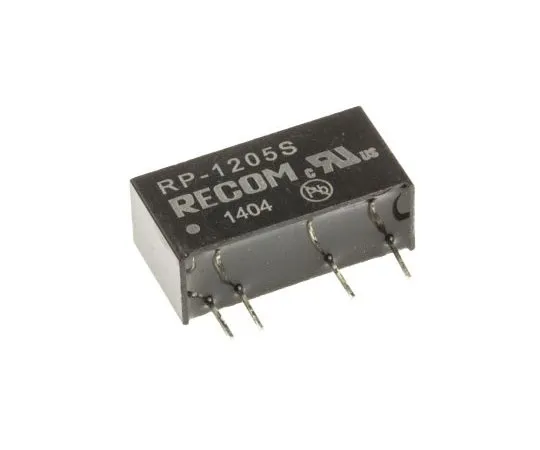

63-7559-59 Recom RP 1W Isolated DC-DC Converter Through Hole, Voltage in 10.8 → 13.2 V dc, Voltage out 5V dc RP-1205S
Product Description
Product Model: 63-7559-59Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7559-59
Product Brand: Recom
Features
- Conforms to EN60950-1, UL609501-1, EN60601-1. Operating temperature is without derating. 3. Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RP Series. The Recom RP series has very high isolation of 5.2 kVDC in a compact size. The DC/DC converters are EN-60601-1 certified, making them suitable for medical as well as IGBT driver applications. Industrial standard pin out Single and dual output options 250Vac rated 5.2kVdc isolation makes it ideal for telecom and safety applications UL94V-0 package material High efficiency (80% typ) Short circuit protected. Capacitor input filter
Spec
- Quantity:1piece
- Output Voltage : 5V dc
- Input Voltage Range : 10.8 → 13.2 V dc
- Input Voltage Nominal : 12 V dc
- Isolation Voltage : 2600V ac
- Power Rating : 1W
- Output Current : 200mA
- Mounting Type : Through Hole
- Number of Outputs : 1
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Depth : 10.2mm
- CODE No.:459-8012
