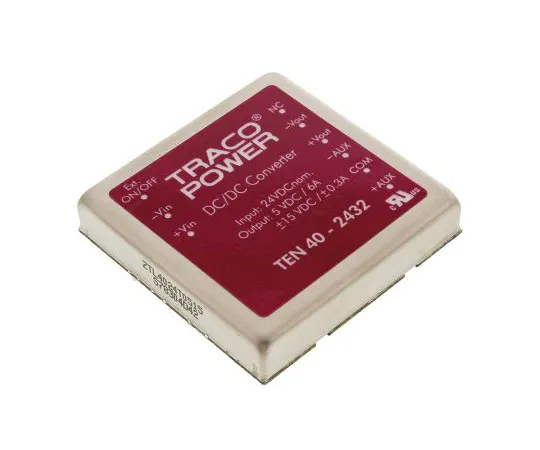

63-7558-17 TRACOPOWER TEN 40 40W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out 5/±15V dc TEN 40-2432
Product Description
Product Model: 63-7558-17Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-7558-17
Product Brand: TRACOPOWER
Features
- Single o/p derates above 45°C, Triple o/p derates above 40°C. 3. Traco 40W Single/Triple Output Regulated Isolated DC-DC Converter - TEN 40 Series. 40W single/triple output regulated isolated DC-DC converters with a high power density. These single/triple output regulated isolated DC-DC converters have a high efficiency which allow an operating temperature range from -40°C to + 70°C. This series of single/triple output regulated isolated DC-DC converters are suitable for *** in communication systems, industrial electronics and distributed power systems. Very high power density: 40W in a 51x51x10mm package Wide 2:1 input range Models with single, and triple output Very high efficiency up to 89% Remote on/off Short circuit protection Shielded metal case
Spec
- Quantity:1set(5pieces)
- Output Voltage : 5/±15V dc
- Input Voltage Range : 18 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1.5kV dc
- Power Rating : 40W
- Output Current : 6/0.3A
- Mounting Type : Through Hole
- Number of Outputs : 3
- Efficiency : 87%
- Package : 2 x 2 in
- Load Regulation : ±5%
- Maximum Temperature : +75°C
- Depth : 10.2mm
- CODE No.:166-5542
