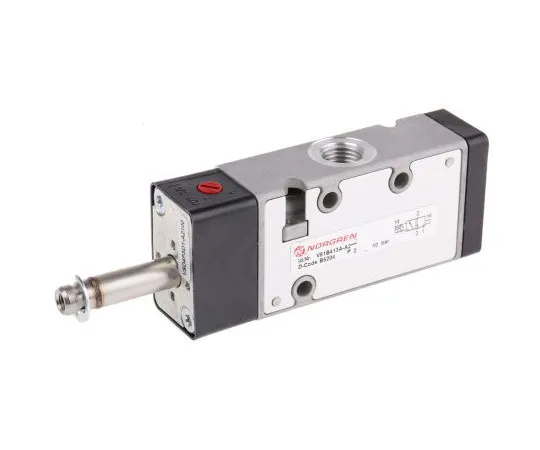

63-7556-60 Norgren 3/2 Pneumatic Control Valve Solenoid/Pilot G 1/4 61 Series V61B413A-A2000
Product Description
Product Model: 63-7556-60Product Brand: Norgren Feature […]
Contact Us
Product Details
Product Model: 63-7556-60
Product Brand: Norgren
Features
- Compressed air, whilst generally considered a safe source of energy, must always be treated with caution and under no circumstances be ***d for any other purposes than that for which it is int***ed. Pilot valves are sometimes referred to as pressure actuated valves. Solenoid coil operators and connector plugs must be ordered. XF Series V60 - V63. High flow rate in-line ported valves Small volumetric size Maintenance free and easy assembly Low power consumption IP65 Protection Rating Medium: air, filtered, lubricated/dry
Spec
- Quantity:1piece
- Manufacturer Series : 61
- Mounting Style : Manifold
- Function : 3/2
- Connection Port Thread : G 1/4
- Actuation Type : Solenoid/Pilot
- Body Material : Aluminium
- Maximum Flow Rate : 1300L/min
- Minimum Operating Pressure : 2bar
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +50°C
- Thread Standard : G
- CODE No.:456-5775
